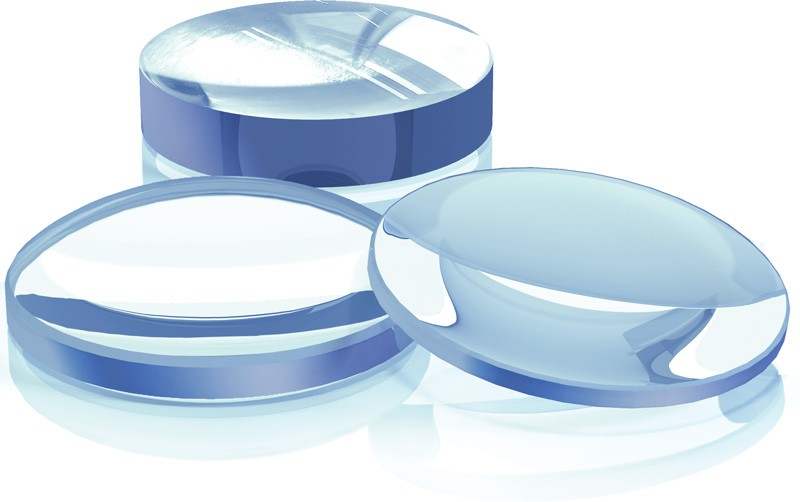

1-PCV-2-A508 UVFS Plano-concave lens, f=-500mm, Ø50.8mm

Plus de vues

152,00 $US

They are used to expand beams or to increase focal
lengths in optical systems or other similar applications. We provides PCV lens up to 500 mm diameter. Under customers request lenses are coated with antireflection coating (please refer to the Coatings section).

Épaisseur centrale, mm	5
Diamètre, mm	50.8
Distance Focale, mm	-500
Material	UVFS
ROC, mm	-228.51
Delivery	2-4 weeks

Description

Détails

They are used to expand beams or to increase focal lengths in optical systems or other similar applications. We provides PCV lens up to 500 mm diameter. Under customers request lenses are coated with antireflection coating (please refer to the Coatings section).

Fonctionnalités

Diverges incident light
Reduce spherical aberation

Applications

Properties (Diameter D, Focal length L) C

D, mm	D, Inches	L Minimal, mm	L Maximal, mm
12.7	0.5	-25	-10,000
25.4	1	-30	-10,000
38.1	1.5	-50	-10,000
50.8	2	-80	-10,000
76.2	3	-100	-10,000
