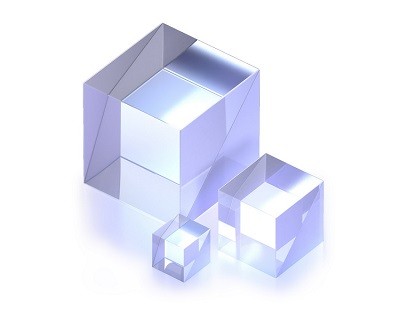

1-NC-4-0550 Non Polarizing Beamsplitter Cube, 5 x 5 x 5 mm, 1064 nm

Plus de vues

1-NC-4-0550 Non Polarizing Beamsplitter Cube, 5 x 5 x 5 mm, 1064 nm
123,50 $US
Cubes are constructed by cementing two precision right angle prisms together with metallic-dielectric coating on the hypotenuse surface. Absorption loss to the coating is ~10%, but due to the metallic material of the coating cubes do not change polarization of the incident beam!
Beamsplitting Ratio, % Tp=Ts=45±5%;Rp=Rs=45±5%
Dimensions, mm 5 x 5 x 5
Longueur d'onde, nm 1064
Delivery 2-4 weeks
Description

Détails

Cubes are constructed by cementing two precision right angle prisms together with metallic-dielectric coating on the hypotenuse surface. Absorption loss to the coating is ~10%, but due to the metallic material of the coating cubes do not change polarization of the incident beam!
Fonctionnalités
  • All faces are Antireflection coated
  • Low polarization dependence
