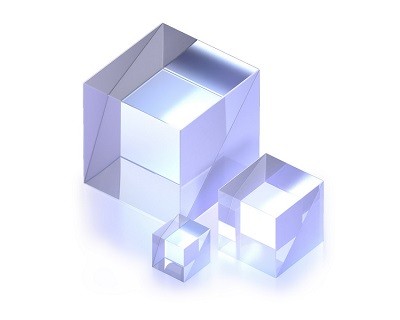

1-NC-3-2050 Non Polarizing Beamsplitter Cube, 20 x 20 x 20 mm, 700 - 1000 nm

Plus de vues

1-NC-3-2050 Non Polarizing Beamsplitter Cube, 20 x 20 x 20 mm, 700 - 1000 nm
169,00 $US
Cubes are constructed by cementing two precision right angle prisms together with metallic-dielectric coating on the hypotenuse surface. Absorption loss to the coating is ~10%, but due to the metallic material of the coating cubes do not change polarization of the incident beam!
Beamsplitting Ratio, % Tp=Ts=45±5%;Rp=Rs=45±5%
Dimensions, mm 20 x 20 x 20
Longueur d'onde, nm 700 - 1000
Delivery 2-4 weeks
Description

Détails

Cubes are constructed by cementing two precision right angle prisms together with metallic-dielectric coating on the hypotenuse surface. Absorption loss to the coating is ~10%, but due to the metallic material of the coating cubes do not change polarization of the incident beam!
Fonctionnalités
  • All faces are Antireflection coated
  • Low polarization dependence
OU
