SL 780-0200

SL 780-0200

More Views

SL 780-0200

Single Frequency Continuous Wave DPSS Laser, 780 nm, Output power 200 mW

Output power, mW	200
Output Beam Diameter, TEM00, mm	0.8 - 1.2
Beam Height, mm	90
Beam quality	M² ≤1.1
Laser Head (L x W x H)	425 x 200 x 123 mm

Description

Details

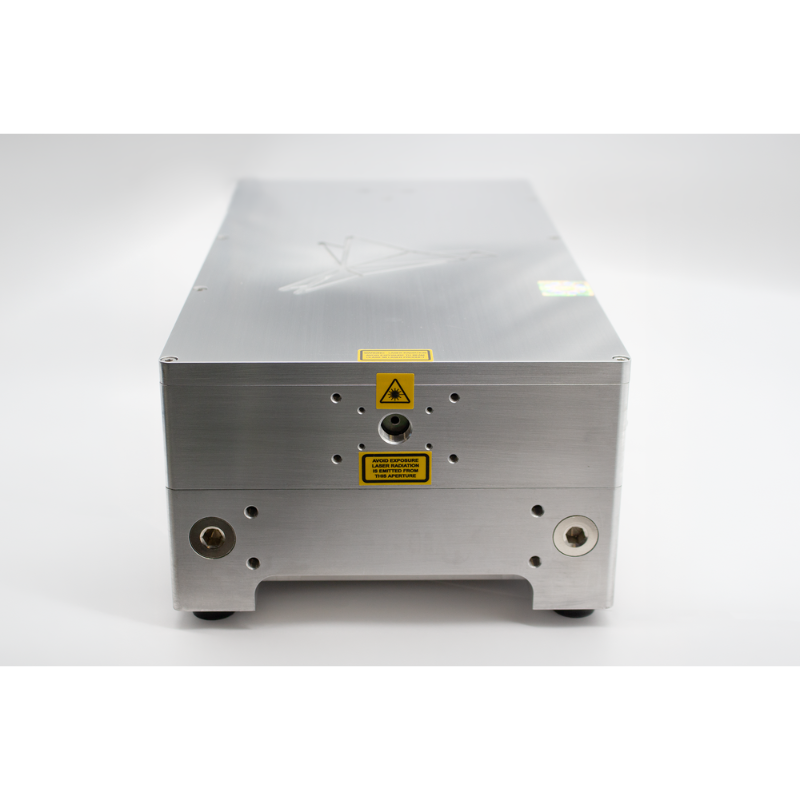

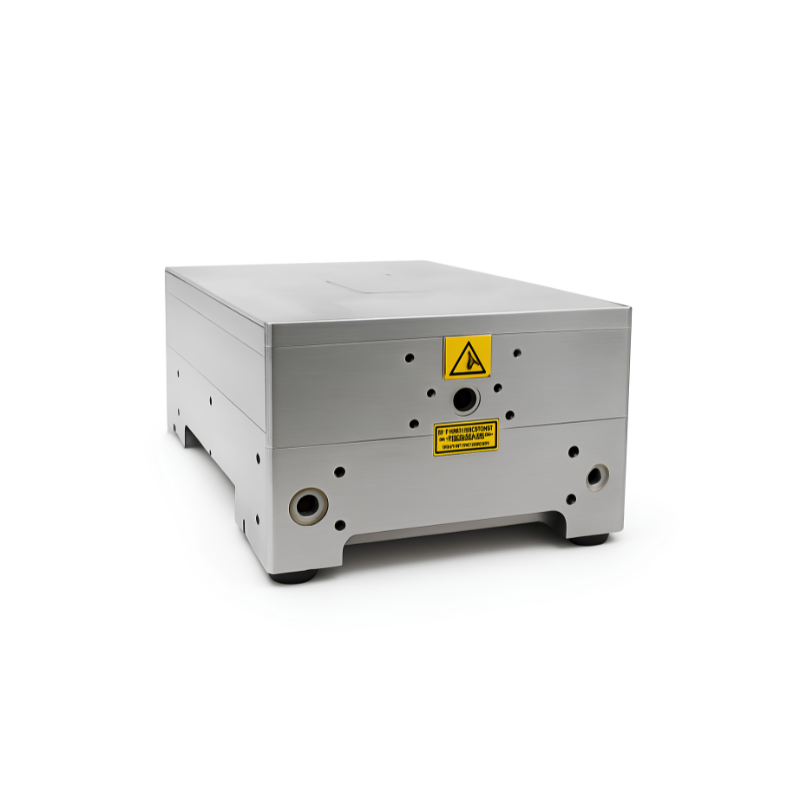

The Skylark SL 780-0200 CW DPSS laser system delivers an ultra-stable, single-frequency near-infrared light output at 780 nm, providing a fixed 200 mW of output power for rubidium-based applications. Designed for high-precision quantum research and industrial setups, this model offers consistent, stable long-term performance, exceptionally low noise, and high optical efficiency.

Features

Output power 200 mW at 780 nm SLM
Feedback locked Single Longitudinal Mode CW operation
Very low noise performance, < 0.3% RMS
Excellent beam quality from smallest footprint
Lowest power consumption for given output
Control connectivity via ethernet (TCP/IP) + digital I/O
Web-based control GUI
Remote diagnostics

Applications

Brillouin microscopy
Atom interferometry
Rb MOTs (magneto-optical traps)
gMOTs (grating magneto-optical traps)
Cold atom trapping
NIR pump source
