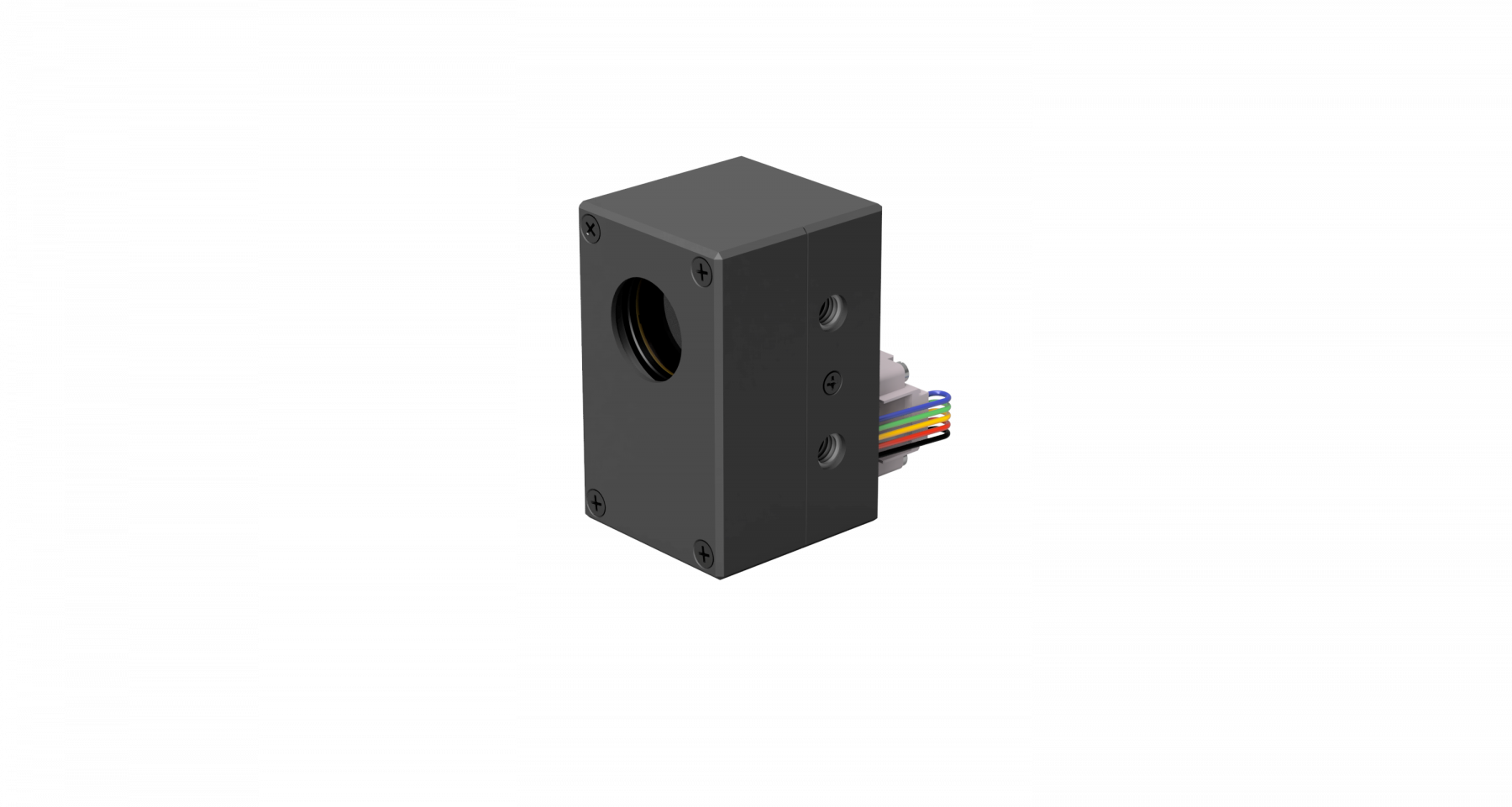

MRO-L4-1064 - Motorized Polarization Rotator, 1064 nm

More Views

US$1,280.00

Motorized polarization rotator (MRO) is a compact motorised device for laser polarisation control.

Design Wavelength, nm	1064
LIDT	10 J/cm² (10 ns @1064 nm)
Waveplate	L/4 @1064 nm

Description

Details

The MRO is produced in the UV, visible and NIR spectral ranges, from 250 nm to 2000 nm.

All optical components of the MRO are made for high LIDT and provide stable and reliable performance even using them with high power lasers in industrial applications.

Features

Compact design
High resolution - 175543 μsteps in 360 deg rotation
High accuracy - ±10 μsteps (± 0.02 deg)
Clear aperture - 18 mm
Fast adjustment - less than 0.2 sec (0 to 45 deg)
