Motorized Linear Stages BN Series / without Controller

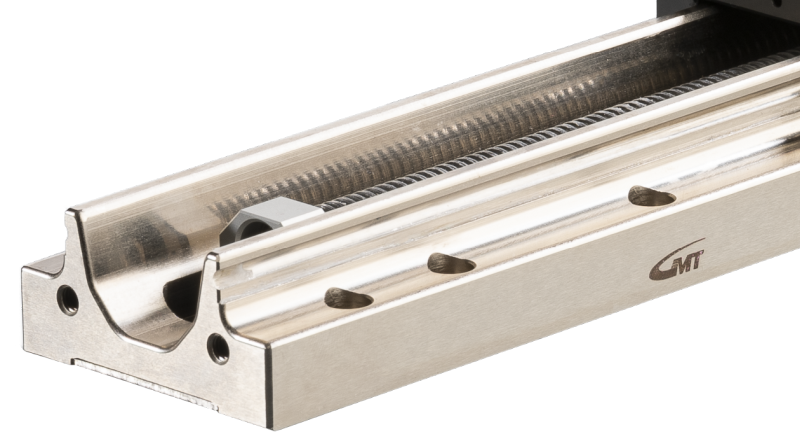

This motorized positioning stage maintains the BN Series' signature monoblock design, integrating the body and guide elements from a coherent stainless steel profile to ensure high thermal stability. The guide mechanism utilizes a pre-loaded ball screw and a recirculating ball-guided carriage, facilitating precise travel and achieving repeatability down to 1 µm.
This version is equipped with a high-torque open-loop 2-phase Nanotec stepper motor (model ST2818L1006-B), achieving travel speeds up to 20 mm/s at a step angle of 1.8° (full step) and providing a holding torque of 12.7 Ncm.

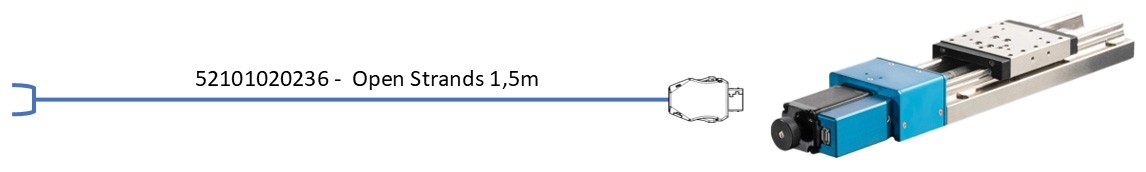

Note: This stage does not include a controller or power supply. It is supplied with a 1.5m ix cable with open strands and requires an external drive system for operation, providing maximum flexibility for integration into existing motion control architectures.

Please note that the associated power supply must be ordered separately.
