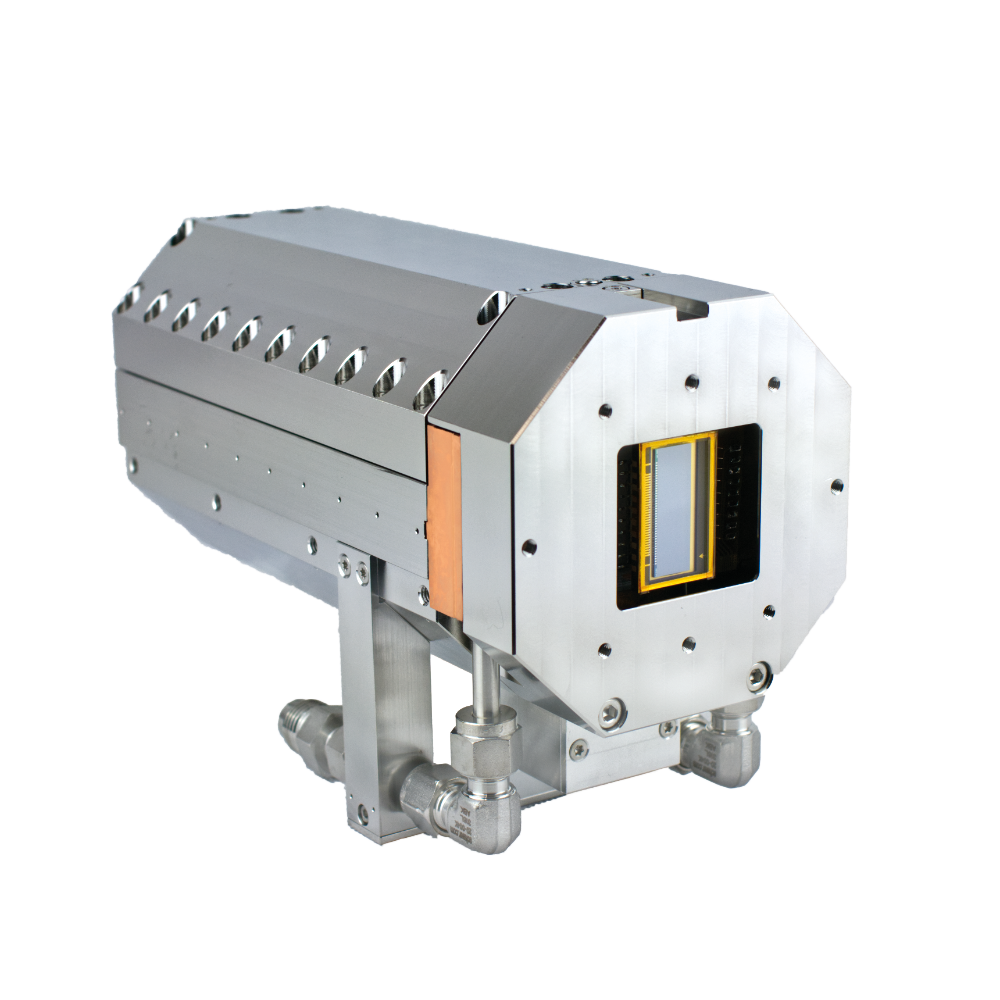

LOTTEs 2k512 BI

This highly sensitive, cooled in-vacuum cameras are equipped with ultra-low noise 18-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the VUV, XUV and X-ray range up to 20 keV. The CCD detectors deliver spectra and images with outstanding dynamic range. To find the best solution for your application, greateyes offers different sensor technologies with quantum efficiencies up to 98%.

Image area	27.6 mm × 6.9 mm
Pixel format	2048 × 512 pixels
Pixel size	13.5 µm × 13.5 µm
CCD sensor cooling	Min. -100°C to 20°C, liquid cooling
Distance flange - focal plane	6 mm
Gain	High: 1.0 counts/e- Low: 0.4 counts/e-
CCD sensor type	Back-illuminated
Full well capacity	100 k e-
Data link	Gigabit Ethernet
Power supply	80-264 VAC, 47-63 Hz, max. 1.1 A (230 V) / 1.9 A (115 V)
Dimensions (H x W x L)	rc version: 9.8 × 9.0 × 23.5 cm / sc version: 9.0 × 12.7 × 18.9 cm
Weight (g)	4900 / 5000

Description

Details

Features

Back-illuminated CCD
Up to 98% quantum efficiency
Sensitive range: VUV to X-ray max. 10 keV

Applications

Soft X-Ray Spectroscopy
Plasma Emission Spectroscopy
High Harmonic Generation Spectroscopy
NEXAFS Spectroscopy
Resonant Inelastic X-Ray Scattering
