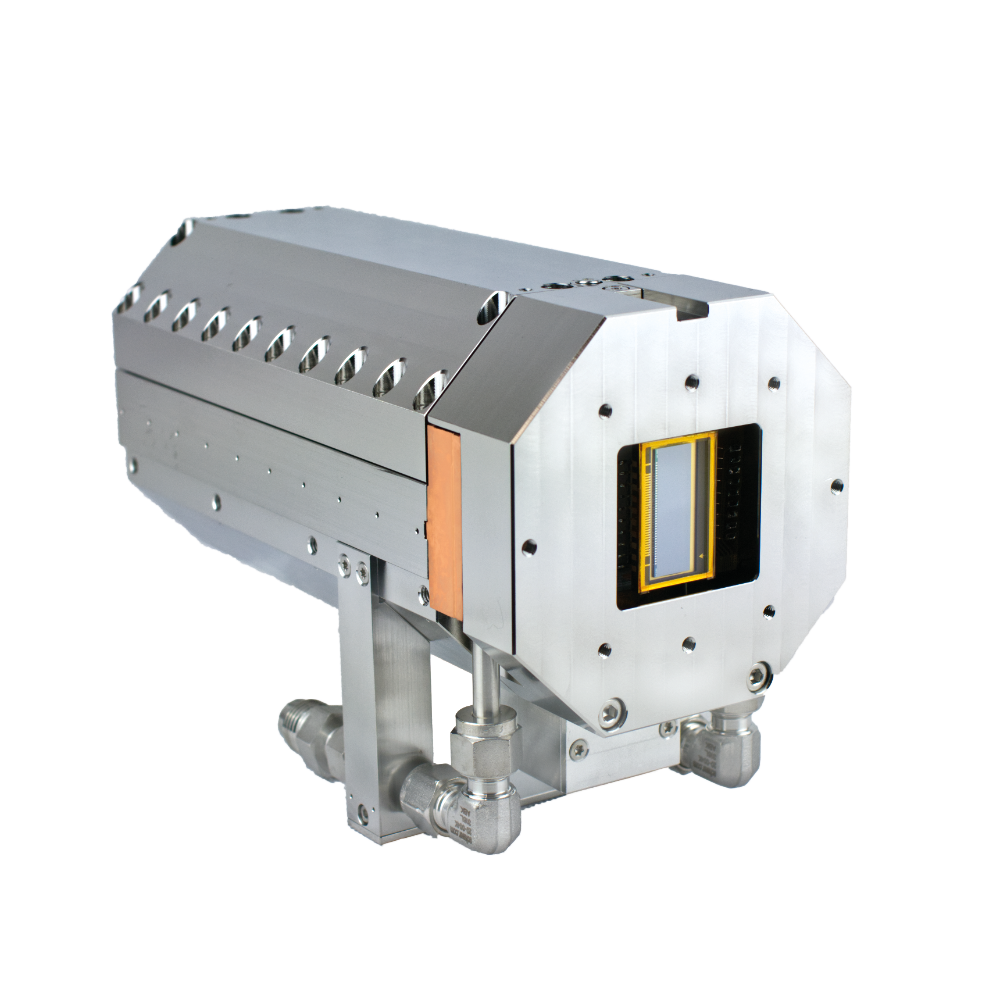

LOTTEs 1k256 FI DD

This highly sensitive, cooled in-vacuum cameras are equipped with ultra-low noise 18-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the VUV, XUV and X-ray range up to 20 keV. The CCD detectors deliver spectra and images with outstanding dynamic range. To find the best solution for your application, greateyes offers different sensor technologies with quantum efficiencies up to 98%.

Image area	26.6 mm × 6.7 mm
Pixel format	1024 × 255 pixels
Pixel size	26 µm × 26 µm
CCD sensor cooling	Min. -100°C to 20°C, liquid cooling
Distance flange - focal plane	6 mm
Dimensions (H x W x L)	rc version: 9.8 × 9.0 × 23.5 cm / sc version: 9.0 × 12.7 × 18.9 cm
Weight (g)	4900 / 5000
CCD sensor type	Front-illuminated, deep depletion
Full well capacity	700 k e-
Data link	USB, Gigabit Ethernet
Power supply	80-264 VAC, 47-63 Hz, max. 1.1 A (230 V) / 1.9 A (115 V)

Description

Details

Features

Front-illuminated, deep depletion CCD
Sensitive X-ray range: 500 eV up to 20 keV
Up to 85% quantum efficiency

Applications

Soft X-Ray Spectroscopy
Plasma Emission Spectroscopy
High Harmonic Generation Spectroscopy
NEXAFS Spectroscopy
Resonant Inelastic X-Ray Scattering
