LOTTEi 2k2k plus BI

This highly sensitive, cooled in-vacuum cameras are equipped with ultra-low noise 18-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the VUV, XUV and X-ray range up to 20 keV. The CCD detectors deliver spectra and images with outstanding dynamic range. To find the best solution for your application, greateyes offers different sensor technologies with quantum efficiencies up to 98%.

Image area	30.7 mm × 30.7 mm
Pixel format	2048 × 2064 pixels
Pixel size	15 µm × 15 µm
CCD sensor cooling	Min. -80°C to 20°C, liquid cooling
Distance flange - focal plane	5 mm

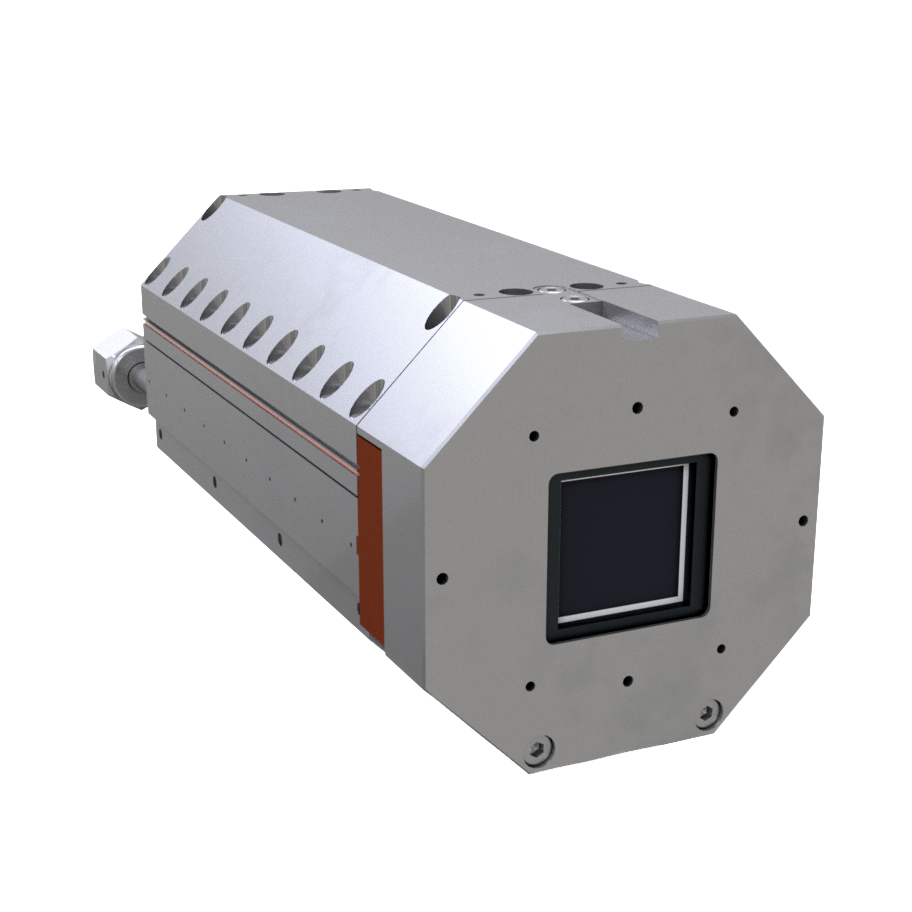

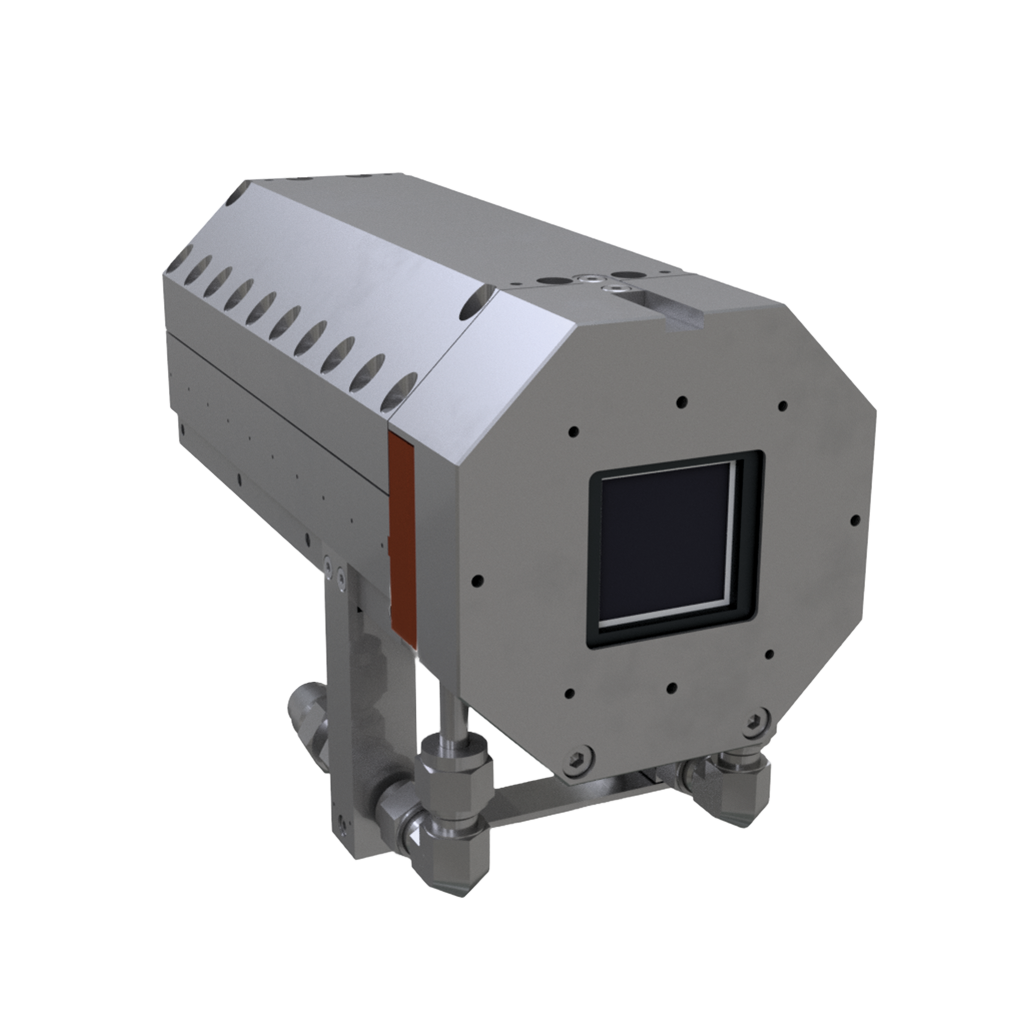

Dimensions (H x W x L)	rc version: 9.8 × 9.0 × 23.5 cm / sc version: 9.0 × 12.7 × 18.9 cm
Weight (g)	5100 / 5100
Gain	High: 1.0 counts/e- Low: 0.4 counts/e-
CCD sensor type	Back-illuminated
Full well capacity	150 k e-
Data link	USB, Gigabit Ethernet
Power supply	85-264 VAC, 47-63 Hz, max. 1.9 A (230 V) / 3.8 A (115 V)

Description

Details

Features

Back-illuminated CCD, VUV to X-ray range
Up to 96% quantum efficiency
High EUV sensitivity

Applications

EUV Lithography
X-Ray Tomography / Fluoroscopy
Fourier Transform Holography
X-Ray Diffraction
X-Ray Phase Contrast Imaging
Ptychographic Spectromicroscopy
Grazing-IncidenceSmall-Angle X-Ray Scattering
