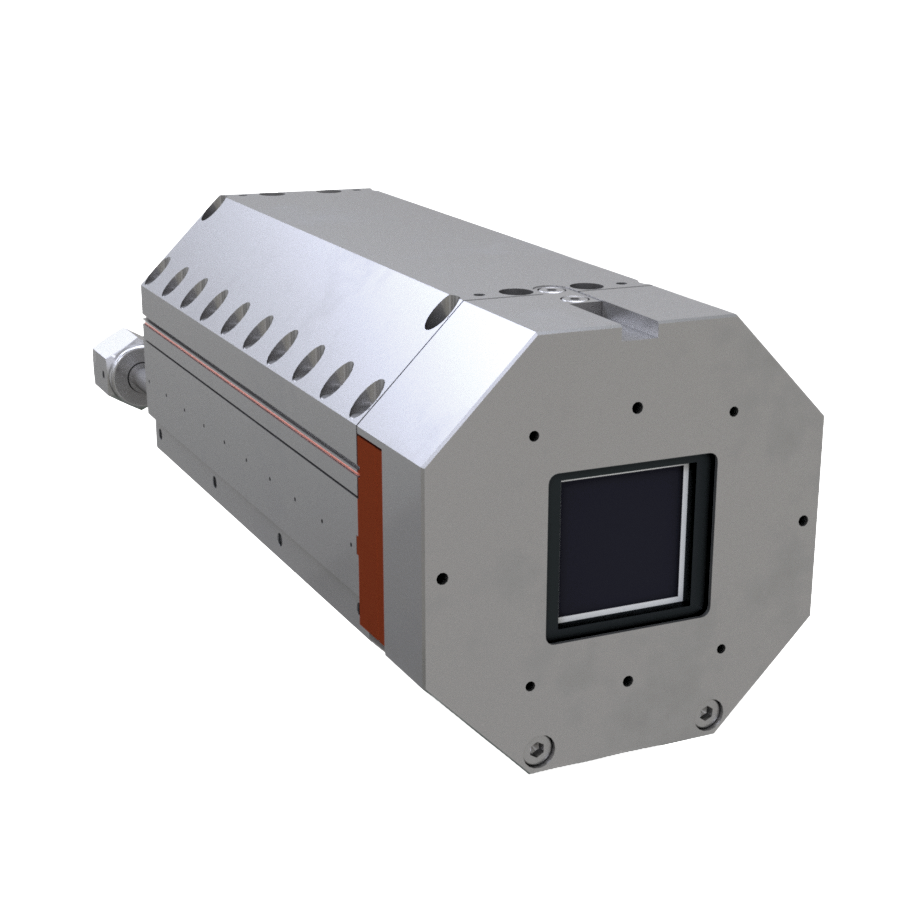

LOTTEi 2k2k BI UV1

This highly sensitive, cooled in-vacuum cameras are equipped with ultra-low noise 18-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the VUV, XUV and X-ray range up to 20 keV. The CCD detectors deliver spectra and images with outstanding dynamic range. To find the best solution for your application, greateyes offers different sensor technologies with quantum efficiencies up to 98%.

Image area	27.6 mm × 27.6 mm
Pixel format	2048 × 2052 pixels
Pixel size	13.5 µm × 13.5 µm
CCD sensor cooling	Min. -80°C to 20°C, liquid cooling
Distance flange - focal plane	5 mm
Dimensions (H x W x L)	rc version: 9.8 × 9.0 × 23.5 cm / sc version: 9.0 × 12.7 × 18.9 cm
Weight (g)	4900 / 5000
Gain	High: 1.0 counts/e- Low: 0.4 counts/e-
CCD sensor type	Back-illuminated, enhanced process
Full well capacity	150 k e-
Data link	USB, Gigabit Ethernet
Power supply	80-264 VAC, 47-63 Hz, max. 1.1 A (230 V) / 1.9 A (115 V)

Description

Details

Features

Back-illuminated CCD for VUV to X-ray range
Up to 96% quantum efficiency
Excellent QE in the EUV and soft X-ray

Applications

EUV Lithography
X-Ray Tomography / Fluoroscopy
Fourier Transform Holography
X-Ray Diffraction
X-Ray Phase Contrast Imaging
Ptychographic Spectromicroscopy
Grazing-IncidenceSmall-Angle X-Ray Scattering
