LOTTEi 1k1k FI

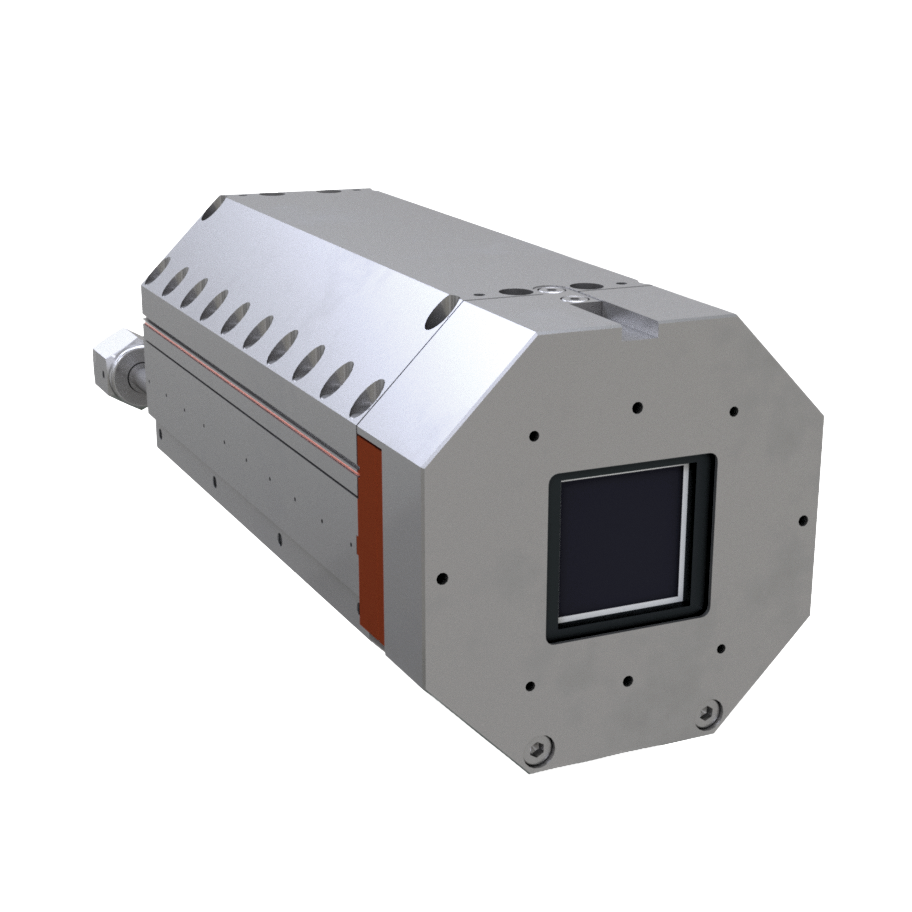

This highly sensitive, cooled in-vacuum cameras are equipped with ultra-low noise 18-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the VUV, XUV and X-ray range up to 20 keV. The CCD detectors deliver spectra and images with outstanding dynamic range. To find the best solution for your application, greateyes offers different sensor technologies with quantum efficiencies up to 98%.

Image area	13.3 mm × 13.3 mm
Pixel format	1024 × 1024 pixels
Pixel size	13 µm × 13 µm
CCD sensor cooling	Min. -100°C to 20°C, liquid cooling
Distance flange - focal plane	6 mm
Dimensions (H x W x L)	rc version: 9.8 × 9.0 × 23.5 cm / sc version: 9.0 × 12.7 × 18.9 cm
Weight (g)	4900 / 5000
Gain	High: 1.0 counts/e- Low: 0.4 counts/e-
CCD sensor type	Front-illuminated
Full well capacity	100 k e-
Power supply	80-264 VAC, 47-63 Hz, max. 1.1 A (230 V) / 1.9 A (115 V)

Description

Details

Features

Sensitive X-ray range: 500 eV to 10 keV
Up to 72% quantum efficiency
Front-illuminated CCD

Applications

EUV Lithography
X-Ray Tomography / Fluoroscopy
Fourier Transform Holography
X-Ray Diffraction
X-Ray Phase Contrast Imaging
Ptychographic Spectromicroscopy
Grazing-IncidenceSmall-Angle X-Ray Scattering
