ELSEs 2k512 series

More Views

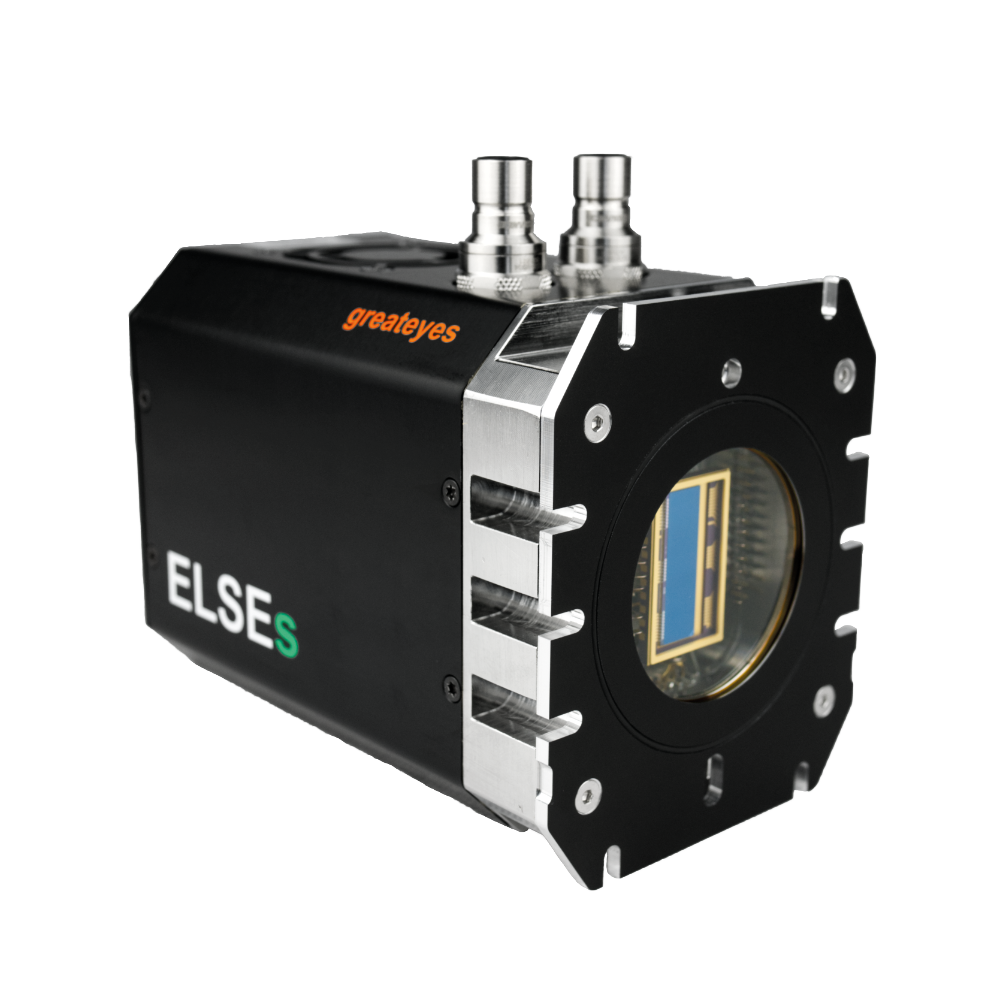

ELSEs 2k512 series

ELSEs
Full-frame deep cooling scientific CCD camera for Spectroscopy applications

Pixel readout frequency	50 kHz, 100 kHz, 250kHz, 500 kHz, 1 MHz, 3 MHz (5 MHz for visualization mode)
AD converter resolution	18-bit
Linearity	Better than 99%
Data link	Gigabit Ethernet, USB 3.0
Included software	greateyes Vision software for Windows 10 / 11
SDK	DLL for Windows; LabVIEW, EPICS, Linux, Python, Tango driver (optional)
Drivers	EPICS, Tango, µManage
TTL interface signals	Exposure out, shutter out, 2 external trigger in
Operating conditions	Temperature: 0°C to 35°C ambient; Relative humidity: <80% (non-condensing)
Power supply	80-264 VAC, 47-63 Hz, max. 1.1 A (230 V) / 1.9 A (115 V)

Description

Details

ELSE for Spectroscopy

High resolution up to 16.8 Megapixel

ELSEs integrates cutting-edge low-noise electronics and ultra-deep cooling technology while keeping a compact camera design. Multiple readout speeds can be selected supporting pixel rates from 50 kHz up to 5 MHz.

Functionalities include fully flexible binning operation, various trigger and synchronization modes, Crop and Burst mode, software-selectable gain as well as temperature monitoring of the sensor and the Peltier hot side.

True 18 bit AD conversion allows the exploitation of the full dynamic range of the CCD sensor for the highest performance and SNR. Choose from a wide range of sensors to find the best match with your requirements. ELSEs is ideally suited for detection of very weak signal intensities where a low-noise floor is paramount.

ELSEs offers unprecedented possibilities for your measurements of tomorrow.

Features

Up to 95% peak quantum efficiency
Full well capacity of 100 ke^-
Scientific low-noise CCD sensors
Compact camera design

Applications

Raman Spectroscopy
NIR Spectroscopy
Fluorescence Spectroscopy
Absorption, Transmission, Reflectance Spectroscopy

Name	ELSEs 2k512 FI UV	ELSEs 2k512 BI UV2	ELSEs 2k512 BI UV3	ELSEs 2k512 FI	ELSEs 2k512 BI MID
Image area	27.6 mm × 6.9 mm	27.6 mm × 6.9 mm	27.6 mm × 6.9 mm	27.6 mm × 6.9 mm	27.6 mm × 6.9 mm
Pixel format	2048 × 512 pixels	2048 × 512 pixels	2048 × 512 pixels	2048 × 512 pixels	2048 × 512 pixels
Pixel size	13.5 µm × 13.5 µm	13.5 µm × 13.5 µm	13.5 µm × 13.5 µm	13.5 µm × 13.5 µm	13.5 µm × 13.5 µm
CCD sensor cooling	Min. -100°C to 20°C, forced air or liquid cooling	Min. -100°C to 20°C, forced air or liquid cooling	Min. -100°C to 20°C, forced air or liquid cooling	Min. -100°C to 20°C, forced air or liquid cooling	Min. -100°C to 20°C, forced air or liquid cooling
Distance flange - focal plane	10.0 mm	10.0 mm	10.0 mm	10.0 mm	10.0 mm
CCD sensor type	Front-illuminated	Back-illuminated	Back-illuminated	Front-illuminated	Back-illuminated
Sensor coating	Lumogen	Broadband UV antireflective	UV antireflective	-	Midband antireflective
Full well capacity	100 k e-	100 k e-	100 k e-	100 k e-	100 k e-
Dimensions (H x W x L)	8.3 cm × 10.0 cm × 13.1 cm (3.27ʺ × 3.94ʺ × 5.16ʺ)	8.3 cm × 10.0 cm × 13.1 cm (3.27ʺ × 3.94ʺ × 5.16ʺ)	8.3 cm × 10.0 cm × 13.1 cm (3.27ʺ × 3.94ʺ × 5.16ʺ)	8.3 cm × 10.0 cm × 13.1 cm (3.27ʺ × 3.94ʺ × 5.16ʺ)	8.3 cm × 10.0 cm × 13.1 cm (3.27ʺ × 3.94ʺ × 5.16ʺ)
Weight (g)	2200	2200	2200	2200	2200
Price	Request a quote	Request a quote	Request a quote	Request a quote	Request a quote
Request	✉	✉	✉	✉	✉
