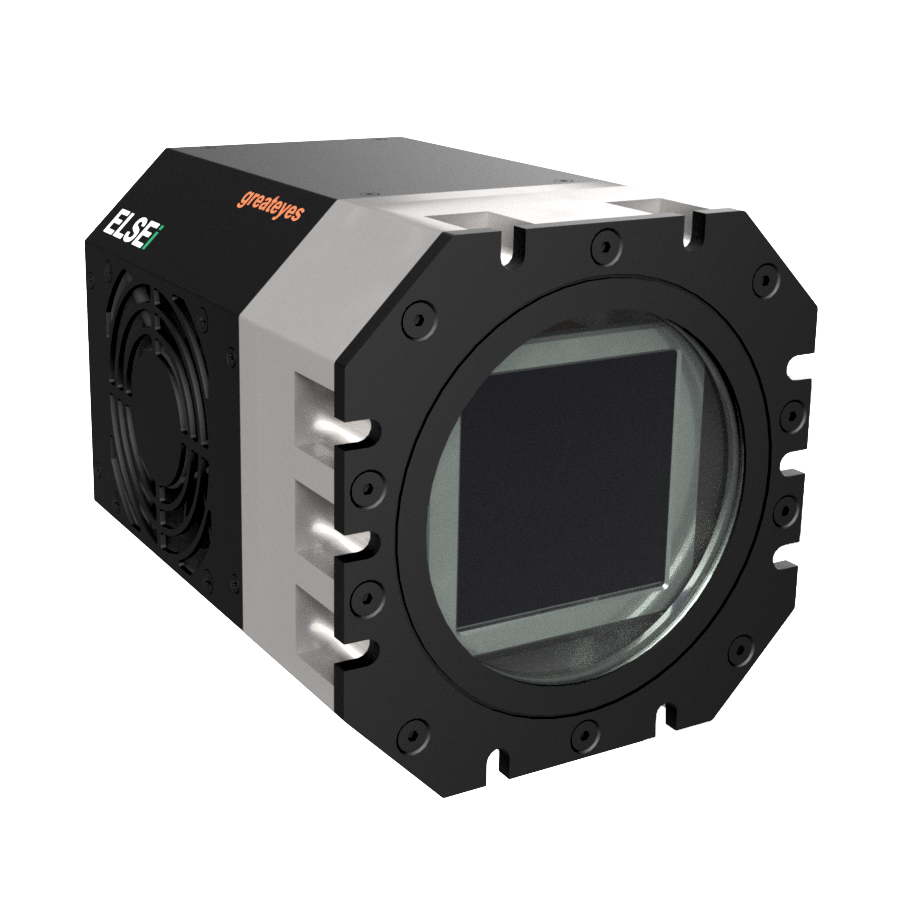

ELSEi 4k4k series

More Views

ELSEi 4k4k series

ELSEi
Full-frame deep cooling scientific CCD camera for Imaging applications

Pixel readout frequency	50 kHz, 100 kHz, 250kHz, 500 kHz, 1 MHz, 3 MHz (5 MHz for visualization mode)
AD converter resolution	18-bit
Linearity	Better than 99%
Window material	UVFS (standard), MgF2, BK7, customised windows on request
Temperature Monitoring	Two thermistors at CCD sensor and thermoelectric cooler (hot side)
Data link	Gigabit Ethernet, USB 3.0
Included software	greateyes Vision software for Windows 10 / 11
SDK	DLL for Windows; LabVIEW, EPICS, Linux, Python, Tango driver (optional)
Drivers	EPICS, Tango, µManage
TTL interface signals	Exposure out, shutter out, 2 external trigger in
Operating conditions	Temperature: 0°C to 35°C ambient; Relative humidity: <80% (non-condensing)
Power supply	85-264 VAC, 47-63 Hz, max. 1.9 A (230 V) / 3.8 A (115 V)

Description

Details

ELSE for Imaging

High resolution up to 16.8 Megapixel

ELSEi integrates cutting-edge low-noise electronics and ultra-deep cooling technology while keeping a compact camera design. Multiple readout speeds can be selected supporting pixel rates from 50 kHz up to 5 MHz.

Functionalities include fully flexible binning operation, various trigger and synchronization modes, Crop and Burst mode, software-selectable gain as well as temperature monitoring of the sensor and the Peltier hot side.

True 18 bit AD conversion allows the exploitation of the full dynamic range of the CCD sensor for the highest performance and SNR. Choose from a wide range of sensors to find the best match with your requirements. ELSEi is ideally suited for detection of very weak signal intensities where a low-noise floor is paramount.

ELSEi offers unprecedented possibilities for your measurements of tomorrow.

Features

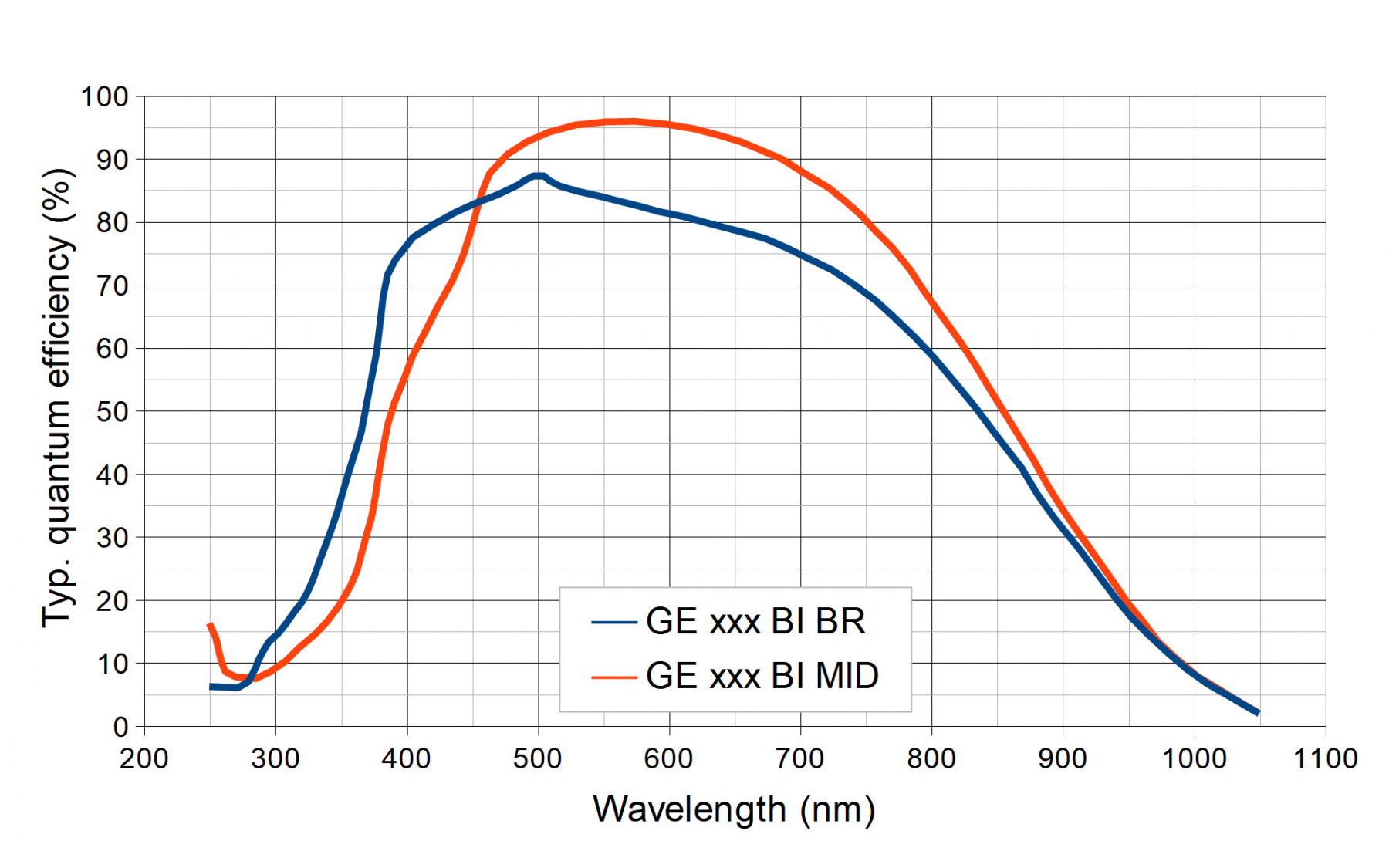

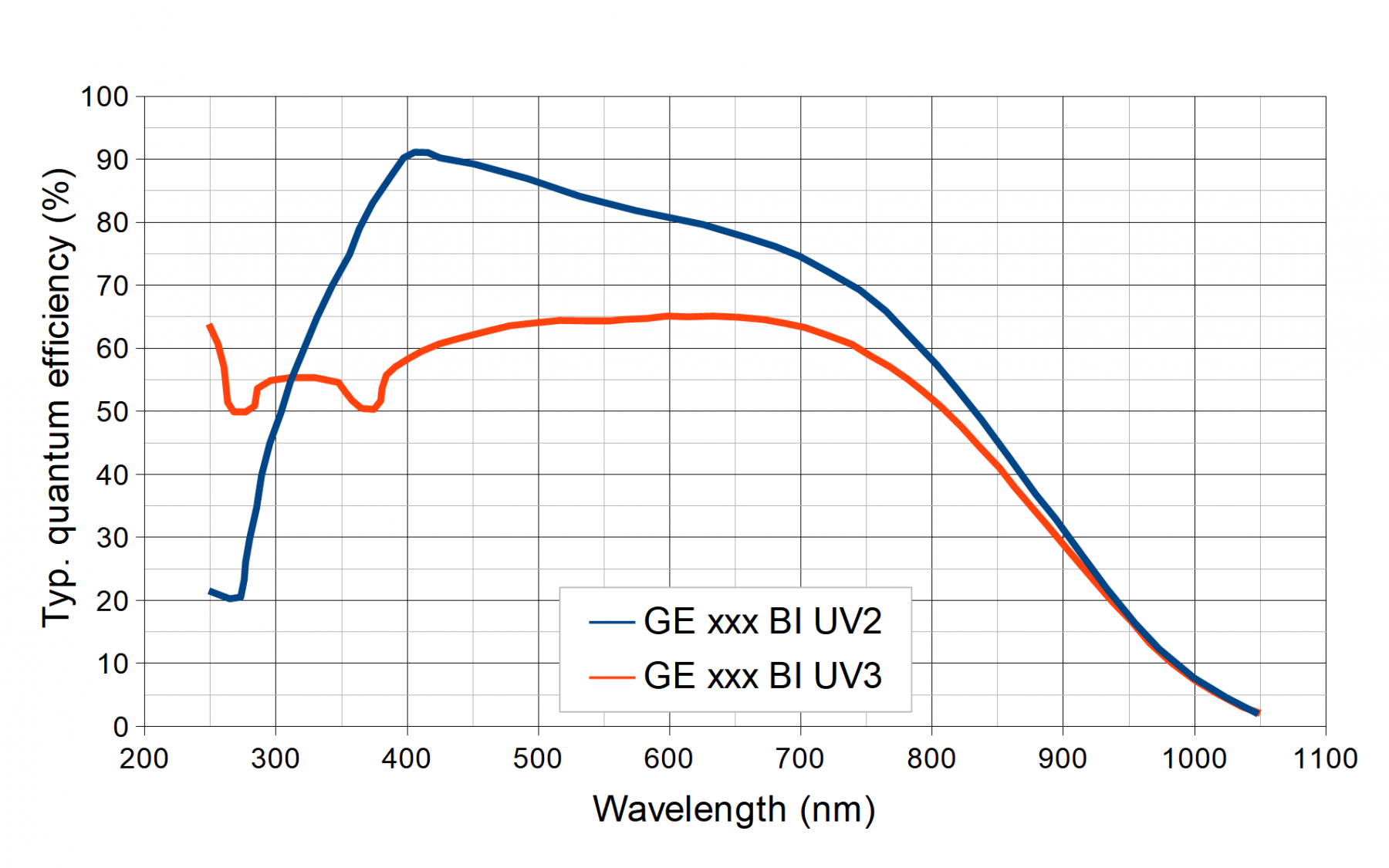

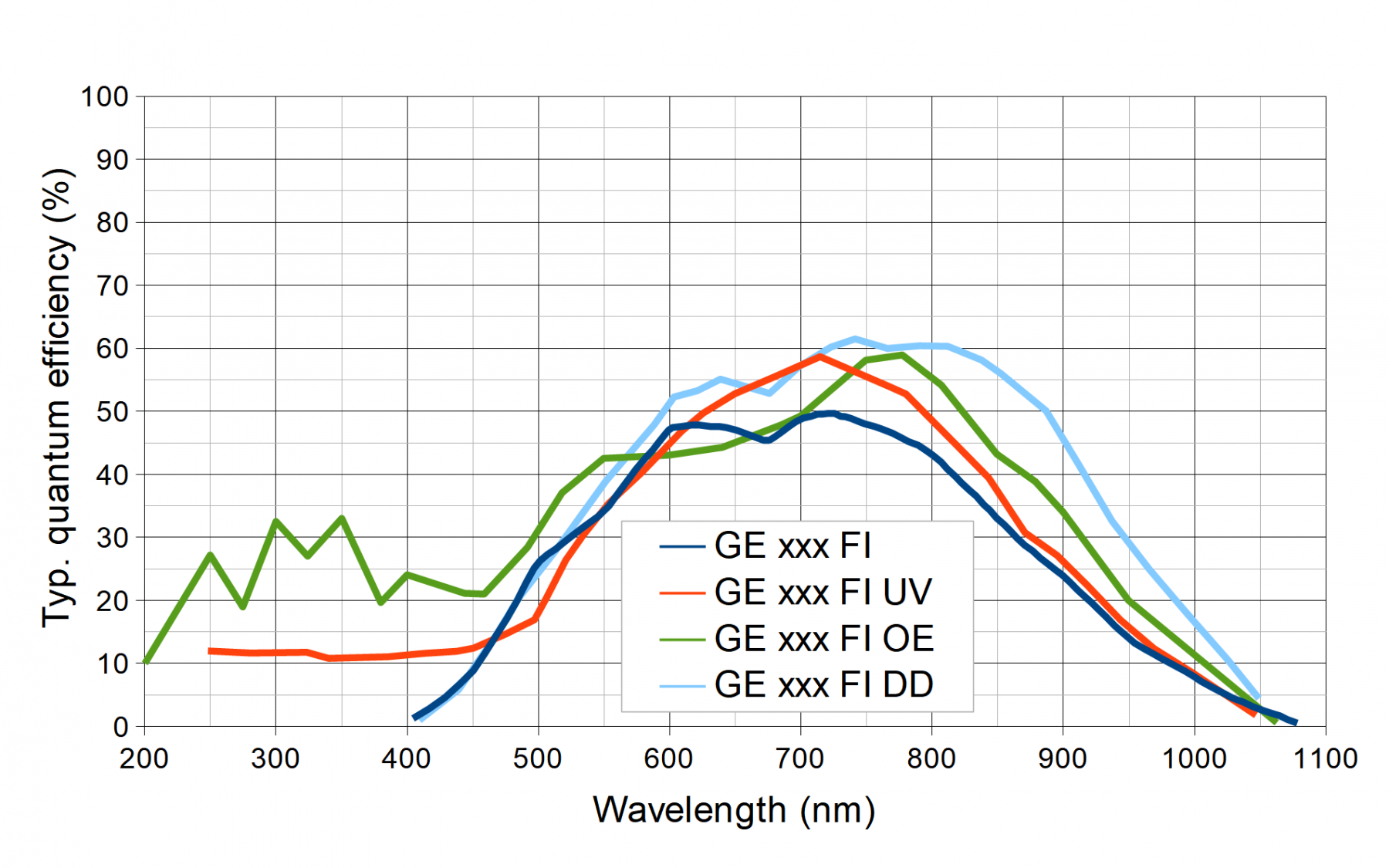

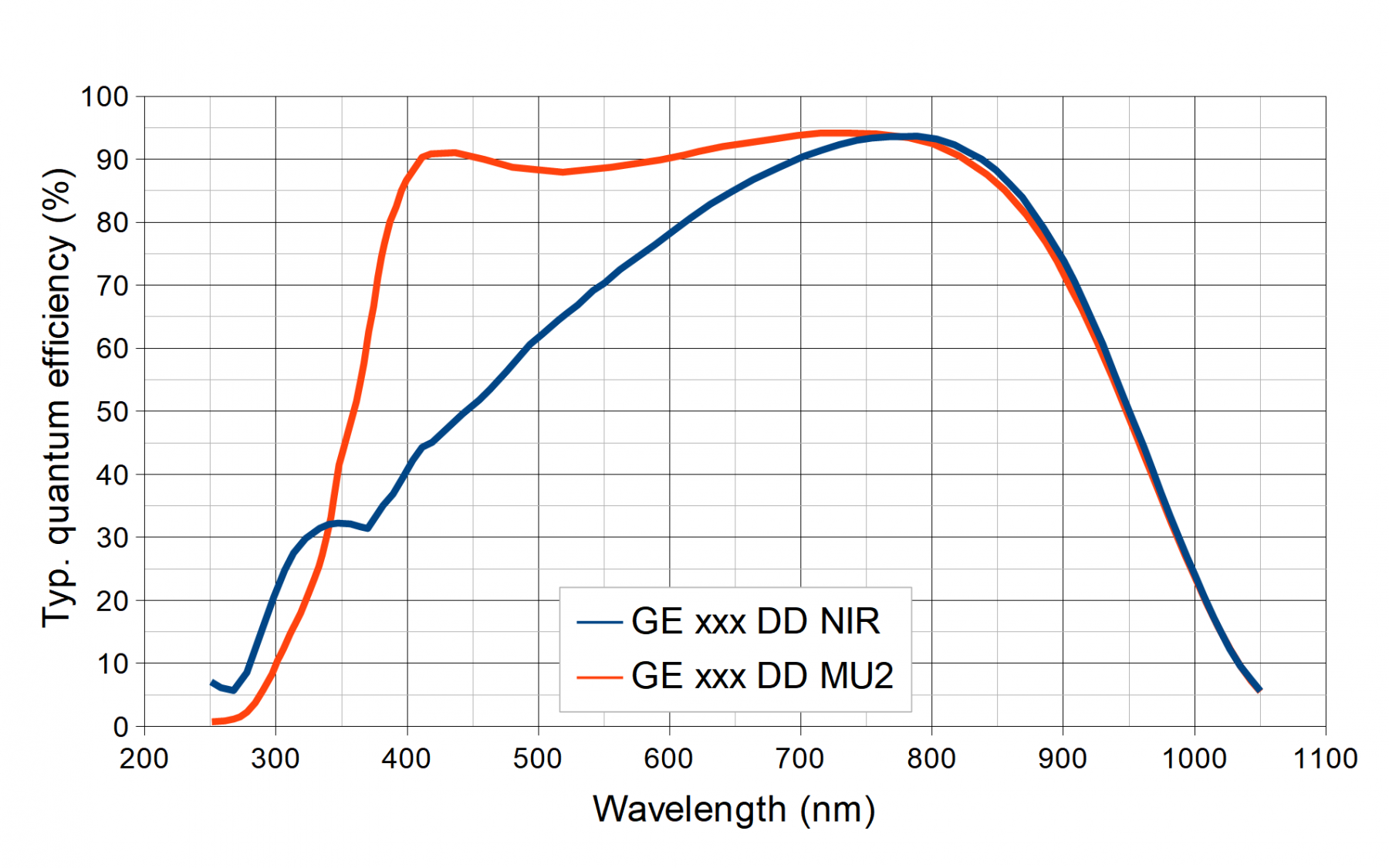

Up to 95% peak quantum efficiency
Full well capacity of 150 ke^-
Scientific low-noise CCD sensors
Compact camera design

Applications

In-vivo Fluorescence Bioimaging
Astronomy
LIBS Spectroscopy
Neutron Tomography
EL / PL Imaging
Ultracold Quantum Studies

Name	ELSEi 4k4k BI BR	ELSEi 4k4k BI MID	ELSEi 4k4k BI UV2	ELSEi 4k4k BI UV4	ELSEi 4k4k BI MU2	ELSEi 4k4k FI
Image area	61.4 mm × 61.4 mm	61.4 mm × 61.4 mm	61.4 mm × 61.4 mm	61.4 mm × 61.4 mm	61.4 mm × 61.4 mm	61.4 mm × 61.4 mm
Pixel format	4096 × 4096 pixels	4096 × 4096 pixels	4096 × 4096 pixels	4096 × 4096 pixels	4096 × 4096 pixels	4096 × 4096 pixels
Pixel size	15 µm × 15 µm	15 µm × 15 µm	15 µm × 15 µm	15 µm × 15 µm	15 µm × 15 µm	15 µm × 15 µm
CCD sensor cooling	Min. -90°C to 20°C, forced air or liquid cooling	Min. -90°C to 20°C, forced air or liquid cooling	Min. -90°C to 20°C, forced air or liquid cooling	Min. -90°C to 20°C, forced air or liquid cooling	Min. -90°C to 20°C, forced air or liquid cooling	Min. -90°C to 20°C, forced air or liquid cooling
Distance flange - focal plane	10.0 mm	10.0 mm	10.0 mm	10.0 mm	10.0 mm	10.0 mm
CCD sensor type	Back-illuminated	Back-illuminated	Back-illuminated	Back-illuminated	Back-illuminated, deep depletion	Front-illuminated
Sensor coating	Broadband antireflective	Midband antireflective	Astro-broadband antireflective	Astro-broadband antireflective	Midband antireflective	-
Full well capacity	150 k e-	Output node 900 k e-	350 k e-	350 k e-	150 k e-	Output node 900 k e-
Dimensions (H x W x L)	13.7 cm × 13.7 cm × 17.1 cm (5.39ʺ × 5.39ʺ × 6.71ʺ)	13.7 cm × 13.7 cm × 17.1 cm (5.39ʺ × 5.39ʺ × 6.71ʺ)	13.7 cm × 13.7 cm × 17.1 cm (5.39ʺ × 5.39ʺ × 6.71ʺ)	13.7 cm × 13.7 cm × 17.1 cm (5.39ʺ × 5.39ʺ × 6.71ʺ)	13.7 cm × 13.7 cm × 17.1 cm (5.39ʺ × 5.39ʺ × 6.71ʺ)	13.7 cm × 13.7 cm × 17.1 cm (5.39ʺ × 5.39ʺ × 6.71ʺ)
Weight (g)	5400	5400	5400	5400	5400	5400
Price	Request a quote	Request a quote	Request a quote	Request a quote	Request a quote	Request a quote
Request	✉	✉	✉	✉	✉	✉
