LOTTEi 1k1k series

LOTTEi
Full-frame deep cooling in-vacuum scientific CCD camera for Imaging applications

Pixel readout frequency	50 kHz, 100 kHz, 250kHz, 500 kHz, 1 MHz, 3 MHz (5 MHz for visualization mode)
AD converter resolution	18-bit
Linearity	Better than 99%
Data link	Gigabit Ethernet
Included software	greateyes Vision software for Windows 10 / 11
SDK	C++ based library for Windows and Linux, LabVIEW, Python
Drivers	EPICS, Tango, µManage
TTL interface signals	Exposure out, external trigger in

Description

Details

LOTTE for Imaging

High resolution up to 16.8 Megapixel

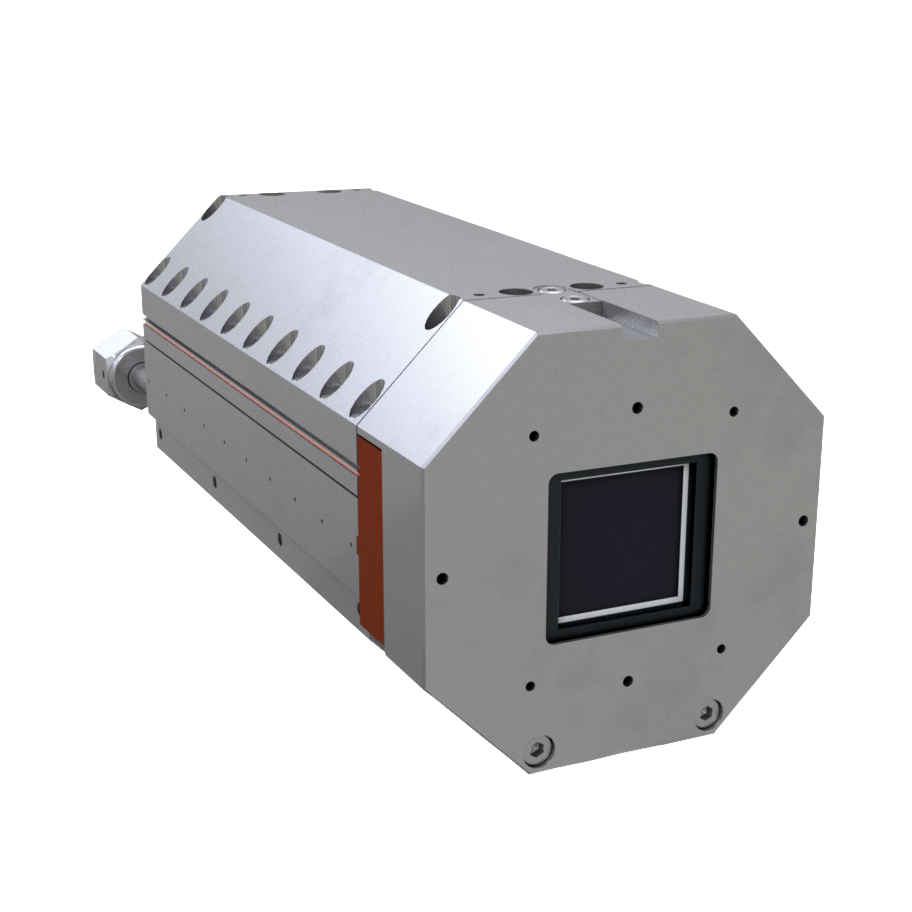

LOTTEi can be submerged, operated and positioned freely inside a vacuum chamber. Utilising scientific-grade back-illuminated CCD sensors for the detection of EUV, VUV and X-ray signals, LOTTE is equipped with a novel and advanced cooling concept enabling detector temperatures as low as -100 °C. It is furthermore driven by the most powerful and versatile true 18-bit electronic platform available for in-vacuum use. This guarantees ultra low noise performance.

One key feature that differentiates LOTTE from its nearest rivals is an innovative encapsulated stainless-steel housing, assuring extremely low outgassing at all times. The special design and unprecedented performance make the LOTTE a unique companion for demanding low-light scientific research applications. Additional handy features are further improving the user experience and adding true value.

Features

Completely stainless steel or aluminum housing
High Quantum Efficiency up to 98%
Max. full well capacity of 120 ke-
Vacuum compatibility: < 1 x 10^-8 mbar

Applications

EUV Lithography
X-Ray Tomography / Fluoroscopy
Fourier Transform Holography
X-Ray Diffraction
X-Ray Phase Contrast Imaging
Ptychographic Spectromicroscopy
Grazing-Incidence Small-Angle X-Ray Scattering

Name	LOTTEi 1k1k BI	LOTTEi 1k1k BI DD	LOTTEi 1k1k BI UV1	LOTTEi 1k1k FI
Image area	13.3 mm × 13.3 mm	13.3 mm × 13.3 mm	13.3 mm × 13.3 mm	13.3 mm × 13.3 mm
Pixel format	1056 × 1027 pixels	1056 × 1027 pixels	1056 × 1027 pixels	1024 × 1024 pixels
Pixel size	13 µm × 13 µm	13 µm × 13 µm	13 µm × 13 µm	13 µm × 13 µm
CCD sensor cooling	Min. -100°C to 20°C, liquid cooling	Min. -100°C to 20°C, liquid cooling	Min. -100°C to 20°C, liquid cooling	Min. -100°C to 20°C, liquid cooling
Distance flange - focal plane	6 mm	6 mm	6 mm	6 mm
Dimensions (H x W x L)	rc version: 9.8 × 9.0 × 23.5 cm / sc version: 9.0 × 12.7 × 18.9 cm	rc version: 9.8 × 9.0 × 23.5 cm / sc version: 9.0 × 12.7 × 18.9 cm	rc version: 9.8 × 9.0 × 23.5 cm / sc version: 9.0 × 12.7 × 18.9 cm	rc version: 9.8 × 9.0 × 23.5 cm / sc version: 9.0 × 12.7 × 18.9 cm
Weight (g)	4900 / 5000	4900 / 5000	4900 / 5000	4900 / 5000
CCD sensor type	Back-illuminated	Back-illuminated, deep depletion CCD	Back-illuminated CCD, for VUV to X-ray range	Front-illuminated
Full well capacity	100 k e-	120 k e-	100 k e-	100 k e-
Power supply	80-264 VAC, 47-63 Hz, max. 1.1 A (230 V) / 1.9 A (115 V)	80-264 VAC, 47-63 Hz, max. 1.1 A (230 V) / 1.9 A (115 V)	80-264 VAC, 47-63 Hz, max. 1.1 A (230 V) / 1.9 A (115 V)	80-264 VAC, 47-63 Hz, max. 1.1 A (230 V) / 1.9 A (115 V)
