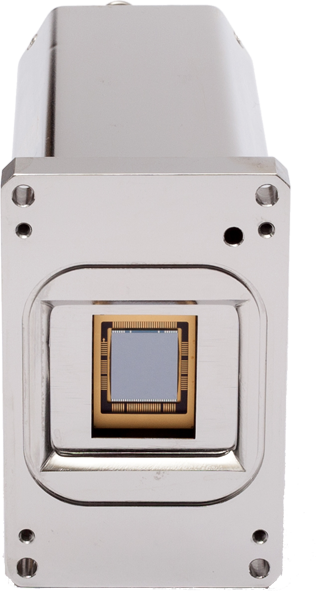

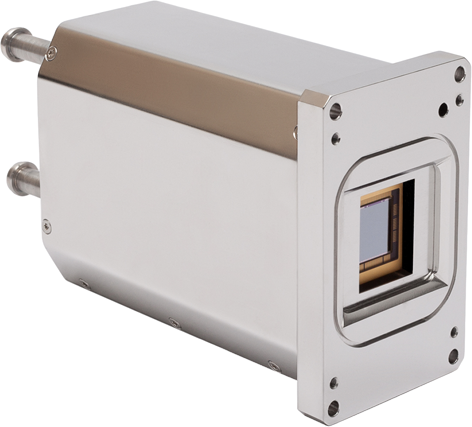

GE-VAC 1024 256 FI DD

This highly sensitive, cooled in-vacuum cameras are equipped with ultra-low noise 16-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the VUV, XUV and X-ray range up to 20 keV. The CCD detectors deliver spectra and images with outstanding dynamic range. To find the best solution for your application, greateyes offers different sensor technologies with quantum efficiencies up to 98%.

Image area	26.6 mm × 6.7 mm
Pixel format	1024 × 256 pixels
Pixel size	26 µm × 26 µm
CCD sensor cooling	Min. -80°C to 20°C, liquid cooling
Gain	High: 1.0 counts/e- Low: 0.2 counts/e-
Data link	USB, Gigabit Ethernet
Distance flange - focal plane	10.0 mm
Dimensions (H x W x L)	10.0 cm (3.94") x 6.2 cm (2.44") x 13.2 cm (5.20")
Weight (g)	2300
CCD sensor type	Front-illuminated, deep depletion
Full well capacity	700 k e-

Description

Details

Features

Sensitive X-ray range: 500 eV up to 20 keV
Up to 85% quantum efficiency
Front-illuminated, deep depletion CCD
