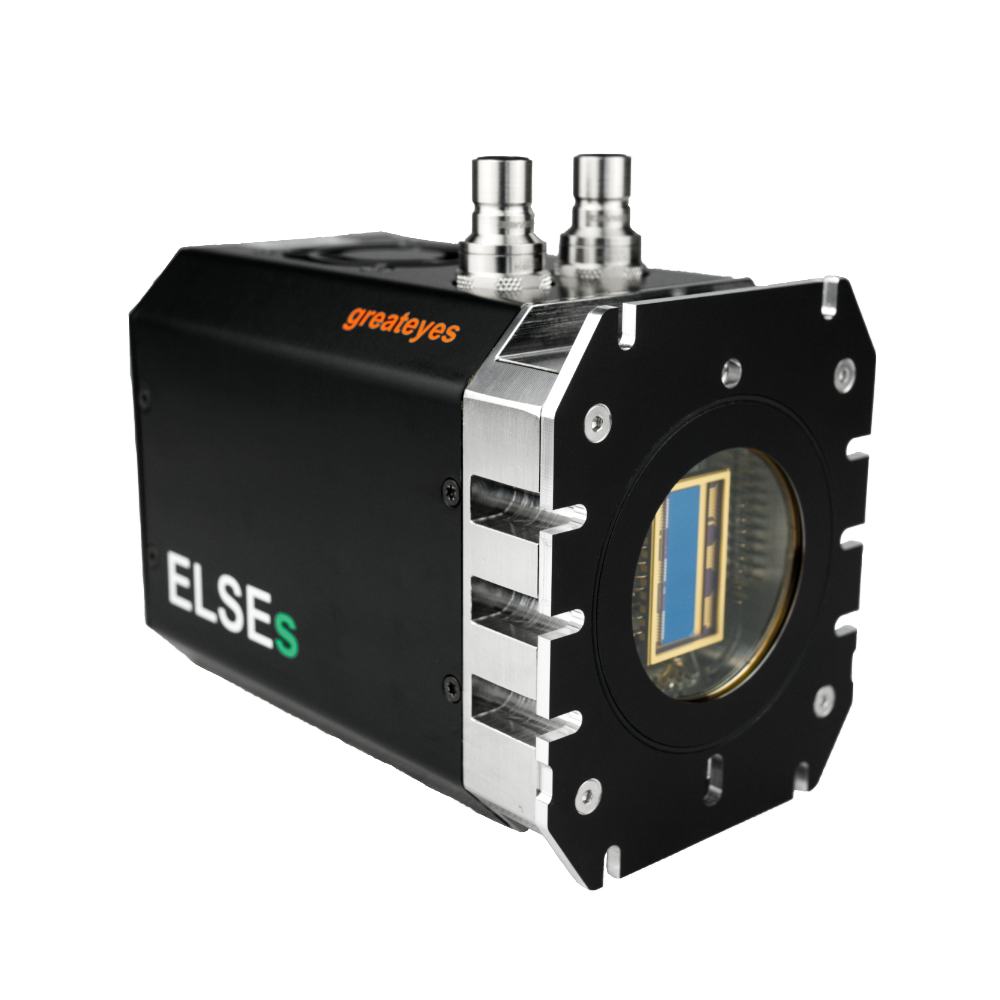

ELSEs 2k512 FI

This series of highly sensitive, cooled cameras are equipped with ultra-low noise 18-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the NIR, VIS and UV range. The detectors deliver spectra and images with outstanding dynamic range. To find the best solution for your application, greateyes offers various scientific CCD sensors with different technologies and coatings with quantum efficiencies up to 95%.

Image area 27.6 mm × 6.9 mm
Pixel format 2048 × 512 pixels
Pixel size 13.5 µm × 13.5 µm
CCD sensor cooling Min. -100°C to 20°C,
forced air or liquid cooling
Distance flange - focal plane 10.0 mm
Gain High: 1.0 counts/e-
Low: 0.4 counts/e-
CCD sensor type Front-illuminated
Full well capacity 100 k e-
Data link USB, Gigabit Ethernet
Dimensions (H x W x L) 8.3 cm × 10.0 cm × 13.1 cm (3.27ʺ × 3.94ʺ × 5.16ʺ)
Weight (g) 2200
Description

Details

This series of highly sensitive, cooled cameras are equipped with ultra-low noise 18-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the NIR, VIS and UV range. The detectors deliver spectra and images with outstanding dynamic range. To find the best solution for your application, greateyes offers various scientific CCD sensors with different technologies and coatings with quantum efficiencies up to 95%.

Features
  • Front-illuminated CCD
  • Up to 55% VIS quantum efficiency
