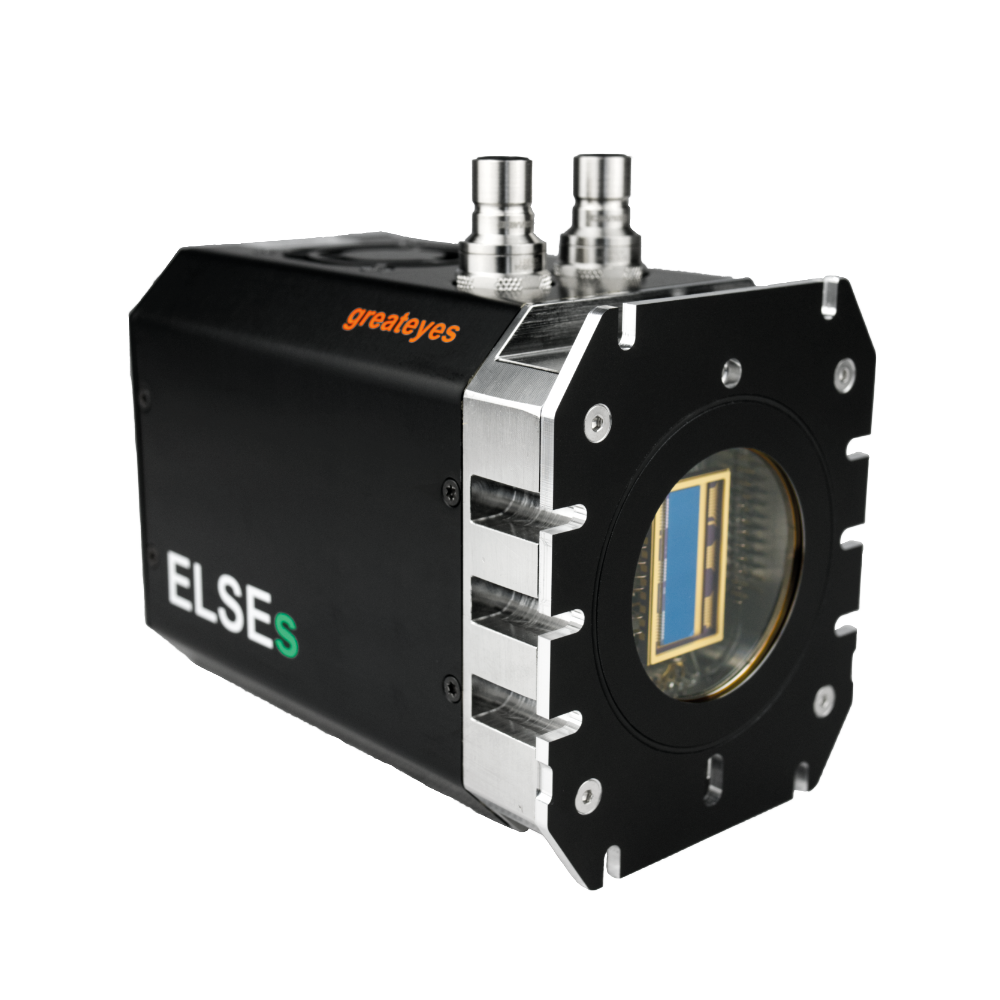

ELSEs 1k256 BI UV3

More Views

ELSEs 1k256 BI UV3

This series of highly sensitive, cooled cameras are equipped with ultra-low noise 18-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the NIR, VIS and UV range. The detectors deliver spectra and images with outstanding dynamic range. To find the best solution for your application, greateyes offers various scientific CCD sensors with different technologies and coatings with quantum efficiencies up to 95%.

Image area 26.6 mm × 6.7 mm
Pixel format 1024 × 255 pixels
Pixel size 26 µm × 26 µm
CCD sensor cooling Min. -100°C to 20°C,
forced air or liquid cooling
Distance flange - focal plane 10.0 mm
Gain High: 1.0 counts/e-
Low: 0.2 counts/e-
CCD sensor type Back-illuminated
Sensor coating UV antireflective
Full well capacity 500 k e-
Data link USB, Gigabit Ethernet
Dimensions (H x W x L) 8.3 cm × 10.0 cm × 13.1 cm (3.27ʺ × 3.94ʺ × 5.16ʺ)
Weight (g) 2200
Description

Details

This series of highly sensitive, cooled cameras are equipped with ultra-low noise 18-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the NIR, VIS and UV range. The detectors deliver spectra and images with outstanding dynamic range. To find the best solution for your application, greateyes offers various scientific CCD sensors with different technologies and coatings with quantum efficiencies up to 95%.

Features
  • Back-illuminated CCD
  • UV antireflective coating
  • Up to 60% UV quantum efficiency
