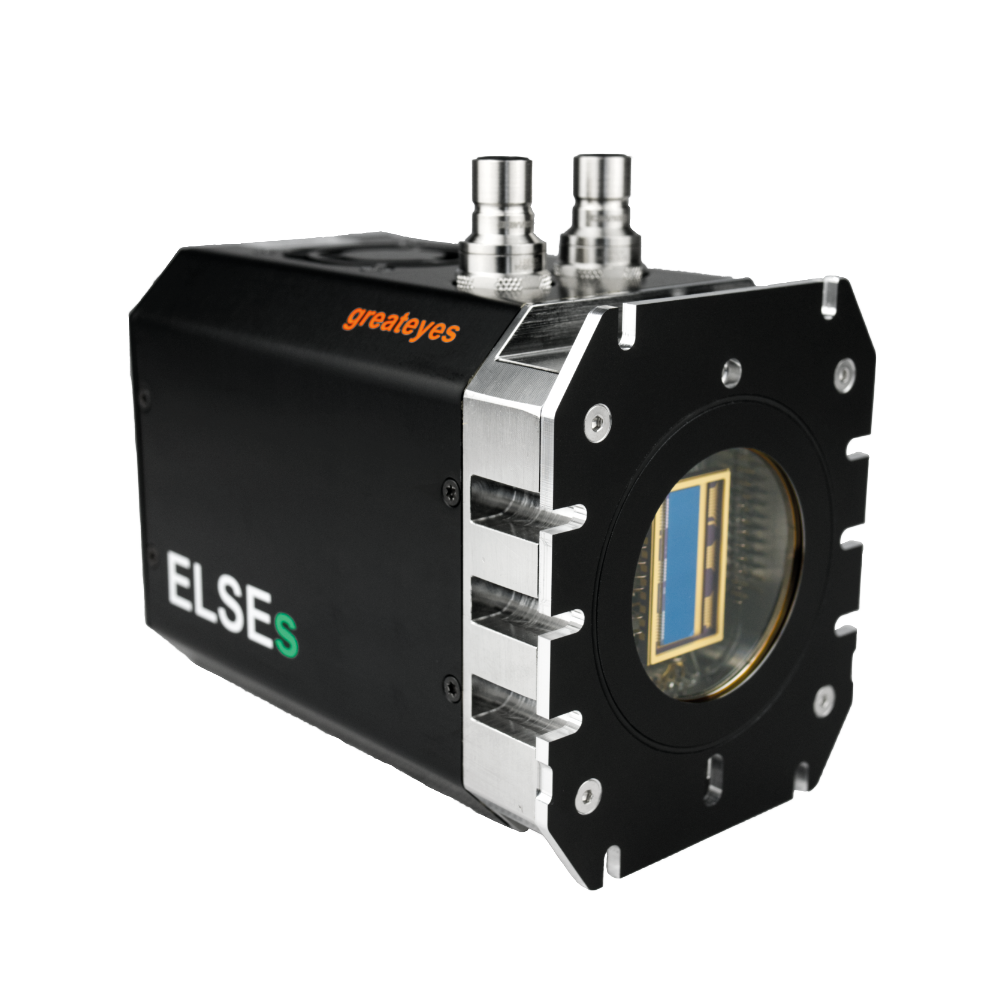

ELSEs 1k128 BI MID

More Views

ELSEs 1k128 BI MID

This series of highly sensitive, cooled cameras are equipped with ultra-low noise 18-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the NIR, VIS and UV range. The detectors deliver spectra and images with outstanding dynamic range. To find the best solution for your application, greateyes offers various scientific CCD sensors with different technologies and coatings with quantum efficiencies up to 95%.

Image area 26.6 mm × 3.3 mm
Pixel format 1024 × 128 pixels
Pixel size 26 µm × 26 µm
CCD sensor cooling Min. -60°C to 20°C,
forced air or liquid cooling
Distance flange - focal plane 10.0 mm
Gain High: 1.0 counts/e-
Low: 0.2 counts/e-
CCD sensor type Back-illuminated
Sensor coating Midband antireflective
Full well capacity 500 k e-
Data link USB, Gigabit Ethernet
Dimensions (H x W x L) 10.0 cm (3.94") x 6.2 cm (2.44") x 13.0 cm (5.12")
Weight (g) 1300
Description

Details

This series of highly sensitive, cooled cameras are equipped with ultra-low noise 18-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the NIR, VIS and UV range. The detectors deliver spectra and images with outstanding dynamic range. To find the best solution for your application, greateyes offers various scientific CCD sensors with different technologies and coatings with quantum efficiencies up to 95%.

Features
  • Up to 95% VIS quantum efficiency
  • Back-illuminated CCD
  • Midband antireflective coating
