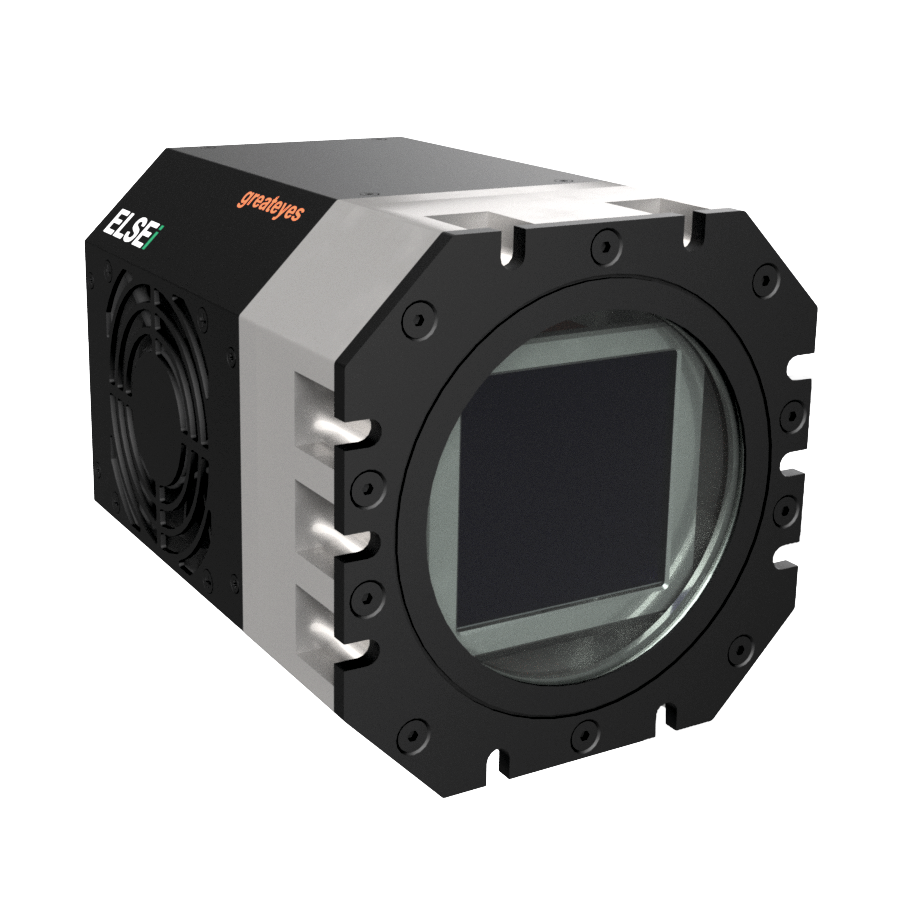

ELSEi 4k4k FI

More Views

ELSEi 4k4k FI

This series of highly sensitive, cooled cameras are equipped with ultra-low noise 18-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the NIR, VIS and UV range. The detectors deliver spectra and images with outstanding dynamic range. To find the best solution for your application, greateyes offers various scientific CCD sensors with different technologies and coatings with quantum efficiencies up to 95%.

Image area 61.4 mm × 61.4 mm
Pixel format 4096 × 4096 pixels
Pixel size 15 µm × 15 µm
CCD sensor cooling Min. -90°C to 20°C,
forced air or liquid cooling
Distance flange - focal plane 10.0 mm
Gain High: 1.0 counts/e-
Low: 0.4 counts/e-
CCD sensor type Front-illuminated
Full well capacity Output node 900 k e-
Data link USB, Gigabit Ethernet
Dimensions (H x W x L) 13.7 cm × 13.7 cm × 17.1 cm (5.39ʺ × 5.39ʺ × 6.71ʺ)
Weight (g) 5400
Description

Details

This series of highly sensitive, cooled cameras are equipped with ultra-low noise 18-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the NIR, VIS and UV range. The detectors deliver spectra and images with outstanding dynamic range. To find the best solution for your application, greateyes offers various scientific CCD sensors with different technologies and coatings with quantum efficiencies up to 95%.

Features
  • Front-illuminated CCD
  • Up to 55% VIS quantum efficiency
