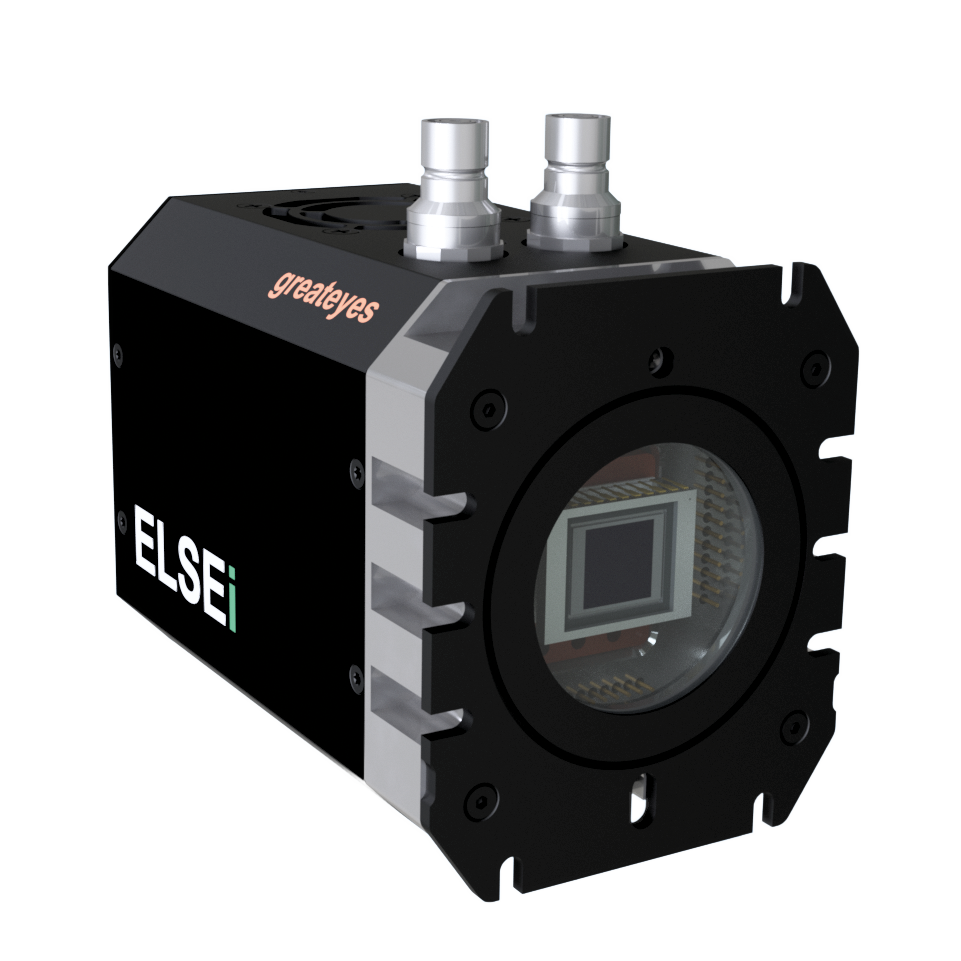

ELSEi 1k1k DD MU2

More Views

ELSEi 1k1k DD MU2

This series of highly sensitive, cooled cameras are equipped with ultra-low noise 18-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the NIR, VIS and UV range. The detectors deliver spectra and images with outstanding dynamic range. To find the best solution for your application, greateyes offers various scientific CCD sensors with different technologies and coatings with quantum efficiencies up to 95%.

Image area	13.3 mm × 13.3 mm
Pixel format	1024 × 1024 pixels
Pixel size	13 µm × 13 µm
CCD sensor cooling	Min. -100°C to 20°C, forced air or liquid cooling
Distance flange - focal plane	10.0 mm
Gain	High: 1.0 counts/e- Low: 0.4 counts/e-
CCD sensor type	Back-illuminated, deep depletion, fringe suppression
Sensor coating	Multiband antireflective
Full well capacity	120 k e-
Data link	USB, Gigabit Ethernet
Dimensions (H x W x L)	8.3 cm × 10.0 cm × 13.1 cm (3.27ʺ × 3.94ʺ × 5.16ʺ)
Weight (g)	2200

Description

Details

Features

Back-illuminated, deep depletion CCD
Multiband antireflective coating
Up to 95% VIS quantum efficiency
Balanced QE from UV to NIR range
