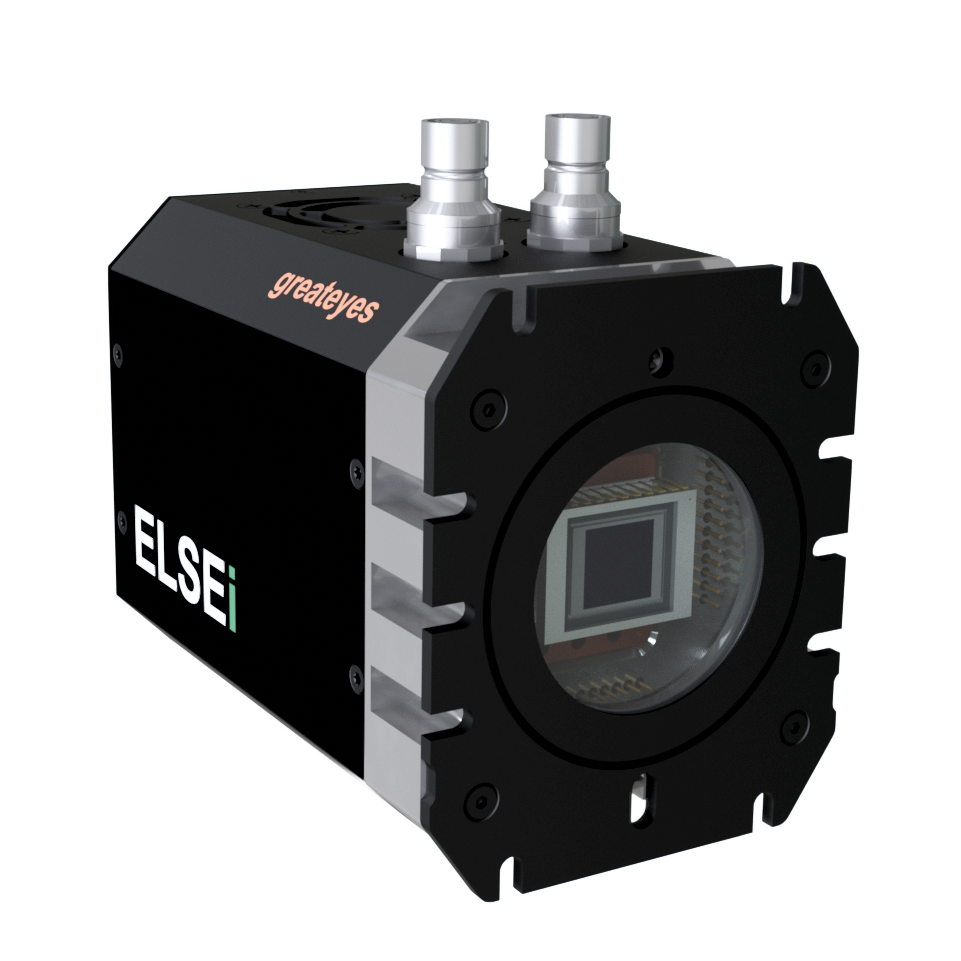

ELSEi 1k1k BI BR

More Views

ELSEi 1k1k BI BR

This series of highly sensitive, cooled cameras are equipped with ultra-low noise 18-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the NIR, VIS and UV range. The detectors deliver spectra and images with outstanding dynamic range. To find the best solution for your application, greateyes offers various scientific CCD sensors with different technologies and coatings with quantum efficiencies up to 95%.

Image area	13.3 mm × 13.3 mm
Pixel format	1024 × 1024 pixels
Pixel size	13 µm × 13 µm
CCD sensor cooling	Min. -100°C to 20°C, forced air or liquid cooling
Distance flange - focal plane	10.0 mm
Gain	High: 1.0 counts/e- Low: 0.4 counts/e-
CCD sensor type	Back-illuminated
Sensor coating	Broadband antireflective
Full well capacity	100 k e-
Data link	USB, Gigabit Ethernet
Dimensions (H x W x L)	8.3 cm × 10.0 cm × 13.1 cm (3.27ʺ × 3.94ʺ × 5.16ʺ)
Weight (g)	2200

Description

Details

Features

Back-illuminated CCD
Broadband antireflective coating
Up to 85% VIS quantum efficiency
High near-UV sensitivity
