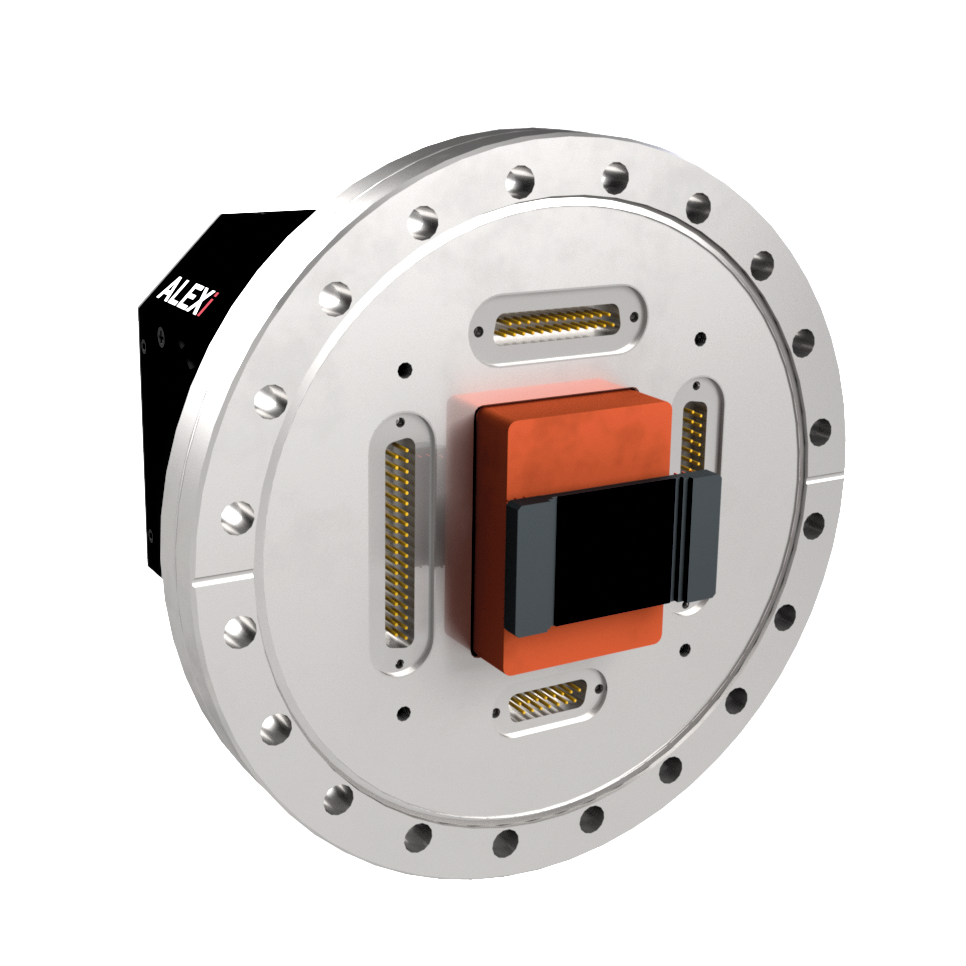

ALEXi 2k2k plus BI

This series of highly sensitive, cooled cameras with vacuum flange is equipped with ultra-low noise 18-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the VUV, EUV and X-ray range up to 20 keV. The CCD detectors deliver spectra and images with outstanding dynamic range. To find the best solution for your application, greateyes offers various flange types and sensors with quantum efficiencies up to 97%.

Image area	30.7 mm × 30.7 mm
Pixel format	2048 × 2064 pixels
Pixel size	15 µm × 15 µm
CCD sensor cooling	Min. -90°C to 20°C, forced air or liquid cooling
Distance flange - focal plane	6 mm for CF DN63 flange
Gain	High: 1.0 counts/e- Low: 0.4 counts/e-
CCD sensor type	Back-illuminated
Full well capacity	150 k e-
Data link	USB, Gigabit Ethernet
Power supply	85-264 VAC, 47-63 Hz, max. 1.9 A (230 V) / 3.8 A (115 V)
Dimensions (H x W x L)	13.7 cm × 13.7 cm × 13.3 cm (5.39ʺ × 5.39ʺ × 5.24ʺ)
Weight (g)	12500

Description

Details

Features

Up to 96% quantum efficiency, VUV to X-ray range
Back-illuminated CCD
High EUV sensitivity
