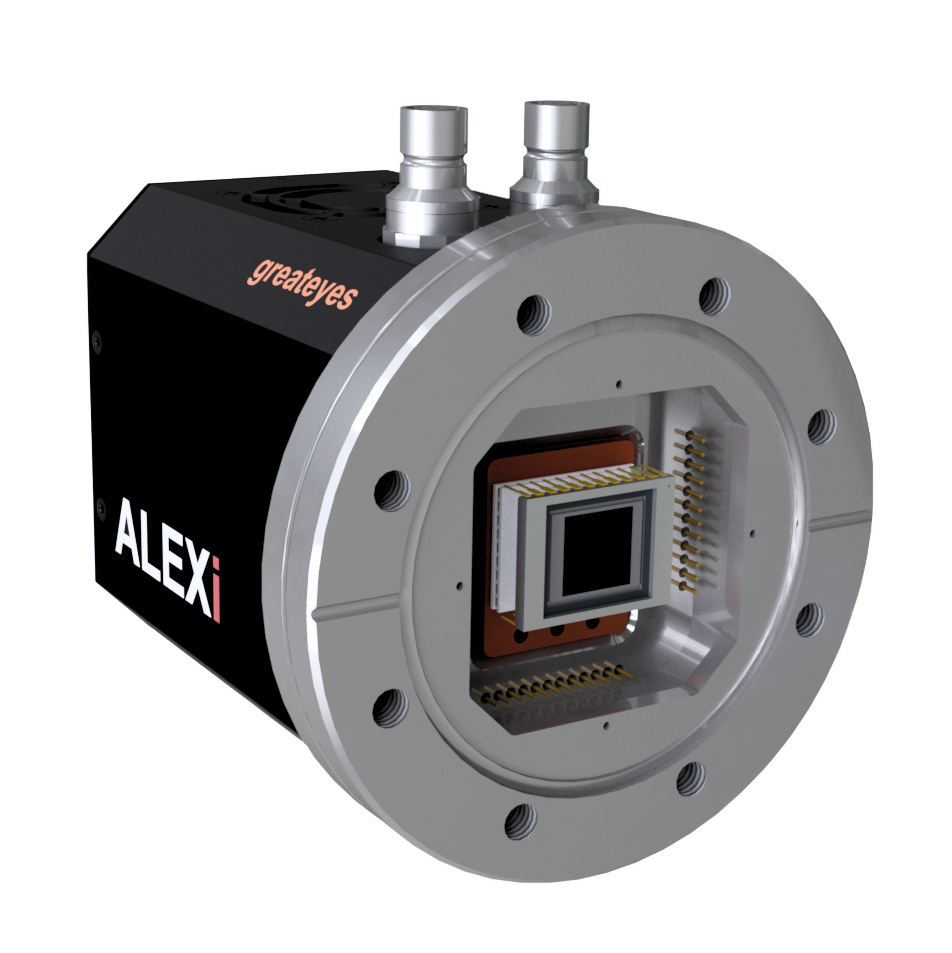

ALEXi 1k1k BI DD

This series of highly sensitive, cooled cameras with vacuum flange is equipped with ultra-low noise 18-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the VUV, EUV and X-ray range up to 20 keV. The CCD detectors deliver spectra and images with outstanding dynamic range. To find the best solution for your application, greateyes offers various flange types and sensor technologies with quantum efficiencies up to 98%.

Image area	13.3 mm × 13.3 mm
Pixel format	1056 × 1027 pixels
Pixel size	13 µm × 13 µm
CCD sensor cooling	Min. -100°C to 20°C, forced air or liquid cooling
Distance flange - focal plane	6 mm for CF DN63 flange
Gain	High: 1.0 counts/e- Low: 0.4 counts/e-
CCD sensor type	Back-illuminated, deep depletion, fringe suppression
Full well capacity	120 k e-
Data link	USB, Gigabit Ethernet
Power supply	80-264 VAC, 47-63 Hz, max. 1.1 A (230 V) / 1.9 A (115 V)
Dimensions (H x W x L)	8.3 cm × 10.0 cm × 10.9 cm (3.27ʺ × 3.94ʺ × 4.29ʺ)
Weight (g)	2900

Description

Details

Features

Back-illuminated, deep-depletion CCD
Sensitive range: VUV to X-ray range up to 20 keV
Up to 98% quantum efficiency
