6-IRVcard - Laser Beam Visualizer, 20 x 15 mm, 780 - 1600 > Green

More Views

6-IRVcard - Laser Beam Visualizer, 20 x 15 mm, 780 - 1600 > Green
US$32.50
Laser Beam Visualizer is intended for visualization of IR and UV coherent and incoherent radiation both from laser and other type-light sources.
Emission light color Green
Operational Aperture, mm 20 x 15
Spectral Range, nm 780 - 1600
Threshold sensitivity, W/mm² 0.05
Type IRVcard
Description

Details

Currently we are offering four types of visualizers:

  1. UVIRV model of visualizer is intended for visualization of IR and UV coherent and incoherent radiation both from laser and other type-light sources. Visualizer requires no electrical power supply. It is an ecologically-safe ceramic tablet made of rare-earth element compounds.
  2. IRV model of visualizer is designed for conversion of near IR radiation of pulsed and CW lasers to visible green light. The material of visualizer is special ceramic with anti-stokes luminophores.
  3. UVIRV-IRV Twin model combines two models (1 and 2) in one visualizer for your convenience. One side of the visualizer is for UV-IRV visualization (emitting red color) and the other side is for IRV visualization (emitting green color).

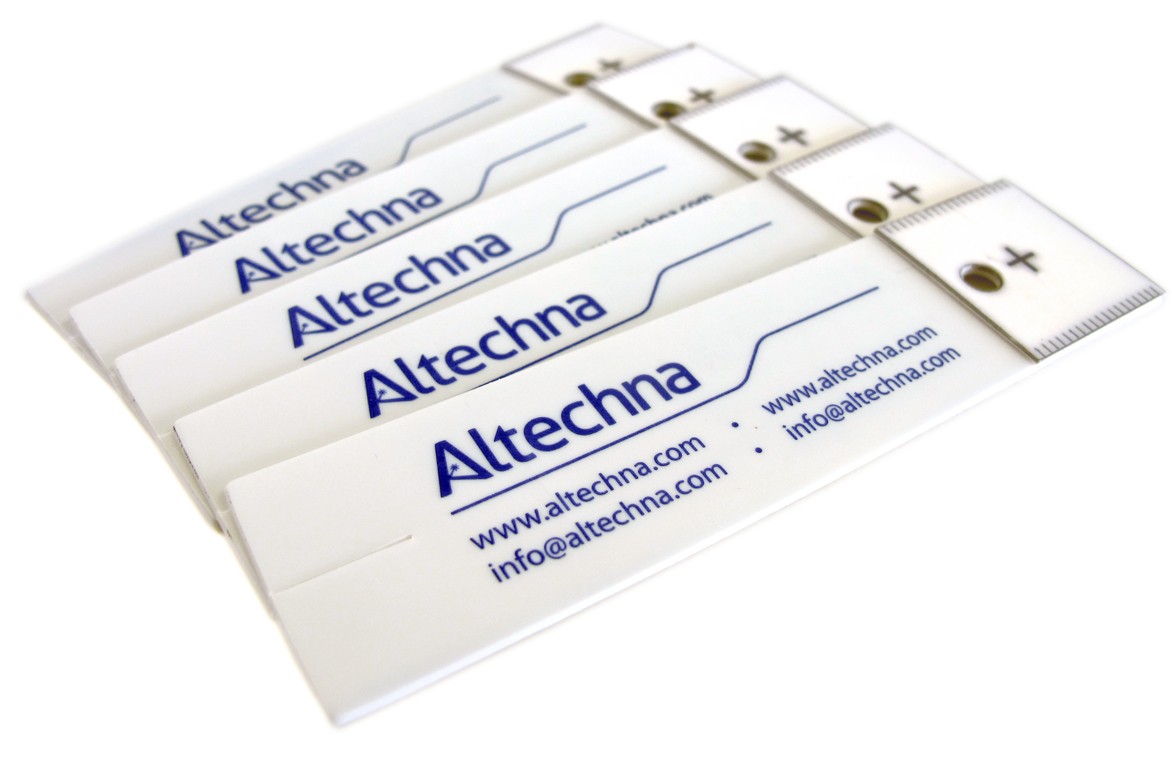

  4. IRV card model of visualizer has similar characteristics as the IRV visualizer above but it is not mounted in a holder. Instead it is integrated in a custom design card.
  5. UVB model of visualizer is designed for UV radiation below 266nm conversion to blue light. Material of UVB is special ceramic with luminophores.
  6. IRVQ model is designed for near IR pulsed radiation convesrion into second harmonic. Material of IRVQ is organic polycrystals.
Features
  • High mechanical durability
  • High sensitivity to laser radiation
  • Universal and convenient
  • Low cost
Applications
Visualiser Model Spectral range, nm Emission light colour Threshold sensitivity, W/cm2 Operational aperture, mm Price, EUR
6-IRV 880-1070 Green 0.02 dia35 68
6-UVIRV 190 -1090 + 1470 - 1600 Red 0.01 dia35 86
6-IRV card 780-1600 Green 0.05 15x20 25
6-UVIRV/IRV-Twin 190 - 1090 + 1470 - 1600 / 880 - 1070 Red / Green 0.02 / 0.01 dia35 135
6-UVB 190-1000 Blue/Red 0.02 dia35 90
6-IRVQ 900-1350 Green to Red 0.1 dia35 90
