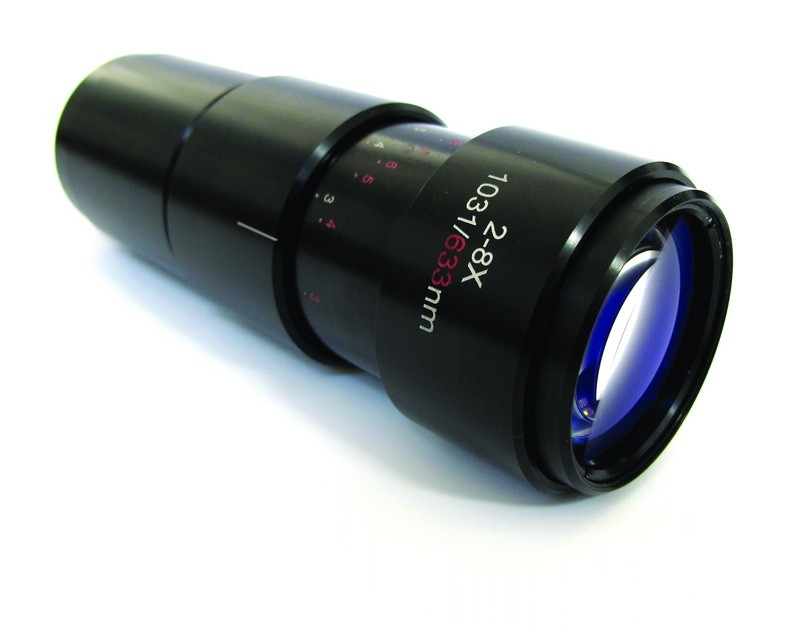

6-BE-Tx2-8-0515 - Tunable 2X - 8X Femtosecond Beam Expander, 515nm

More Views

6-BE-Tx2-8-0515 - Tunable 2X - 8X Femtosecond Beam Expander, 515nm
US$1,680.00
Tunable beam expander is Galilean type telescope, which allows compact design which is reasonable for industrial environment. Emplyed lenses are air spaced, thus expanders are suitable for high power applications. Laserand offers three different type attenuators, each type is designed for specific application:
  • For Nd:YAG lasers
  • For Femtosecond lasers
  • For two wavelengths (e.g. High power beam + guiding beam, or fundamental + harmonic).
Standard beam expanders are designed for four most popular lasers: Nd:YAG; Ti:Sapphire; Yb:KGW and Yb:YAG, but custom wavelengths are available. Standard mouinting thread is M27x1, which is compatible with common 4-axis mounts.
Models with 1.5x-5x and 1x-8x magnification distinguish by their “fixed-length” design which simplifies both integration and usage.
Expansion 2X - 8X
Exit aperture, mm 36
Housing diameter, mm 45 - 50
Housing length, mm 130 - 145
Input aperture, mm 11
Line Femtosecond
Wavelength, nm 515
Delivery 2-4 weeks
Mounting M27x1
Description

Details

Tunable beam expander is Galilean type telescope, which allows compact design which is reasonable for industrial environment. Emplyed lenses are air spaced, thus expanders are suitable for high power applications. Laserand offers three different type attenuators, each type is designed for specific application:
  • For Nd:YAG lasers
  • For Femtosecond lasers
  • For two wavelengths (e.g. High power beam + guiding beam, or fundamental + harmonic).
Standard beam expanders are designed for four most popular lasers: Nd:YAG; Ti:Sapphire; Yb:KGW and Yb:YAG, but custom wavelengths are available. Standard mouinting thread is M27x1, which is compatible with common 4-axis mounts. Models with 1.5x-5x and 1x-8x magnification distinguish by their “fixed-length” design which simplifies both integration and usage.
Features
  • "One turn adjusment" option
  • Expansion ratios 1.5x-5x; 5x-8x; 2x-8x
  • High laser induced damage threshold
  • Transmission better than 97% for both wavelengths
  • Fixed-length design option
