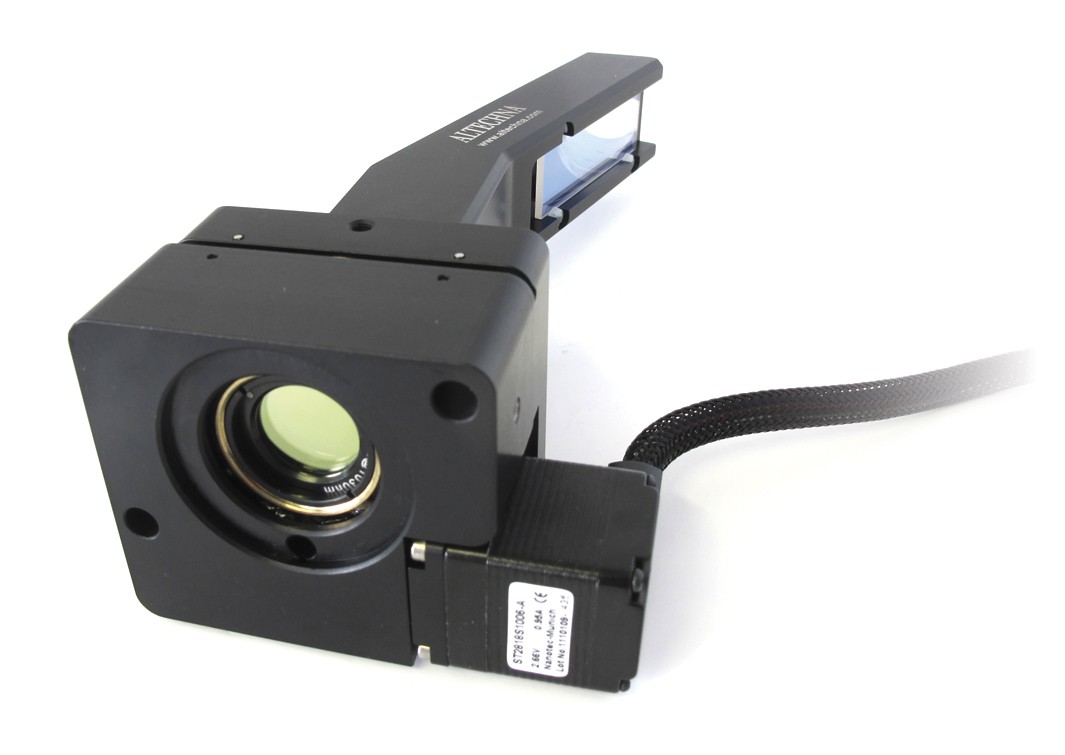

2-UWPA-T1-0800-M - Transmission mode optimized, Motorized ultraFAST Watt Pilot - Attenuator, 800 ± 50 nm

More Views

US$2,769.00

Motorized Watt Pilot is a computer controlled
laser beam attenuation device. It attenuates free space laser beam/pulse continuously without
introducing additional energy fluctuations.

Despite stand alone device look,
Watt Pilot is very compact and it can be easily integrated in custom optical system.

Product assembling instruction is shown in 360^o view tab. Operation principles are described in User
manual.

Download:

Product Brochure

Quick Start Guide

User Manual

Watt Pilot setup

Drawings:

Reflection Type Watt Pilot PDF

Reflection Type Watt Pilot STP

Reflection Type Watt Pilot DXF

Transmission Type Watt Pilot PDF

Transmission Type Watt Pilot STP

Transmission Type Watt Pilot DXF

Attenuation range	1-85% for p-pol beam
Clear Aperture, mm	15
Configuration	λ/2 achromatic waveplate + Ultrafast TFP
Dimensions, mm	91 x 63 x 167
Laser Damage Threshold, J/cm²	>5 J/cm2 10 Hz 10 ns, 1064 nm; or >100 mJ/cm2 1 kHz 100 fs, 800 nm
Optimization	Transmission mode
Wavelength, nm	800 ± 50
Watt Pilot series	Ultrafast
Delivery	2-4 weeks

Description

Details

Motorized Watt Pilot is a computer controlled laser beam attenuation device. It attenuates free space laser beam/pulse continuously without introducing additional energy fluctuations.

Despite stand alone device look, Watt Pilot is very compact and it can be easily integrated in custom optical system.

Product assembling instruction is shown in 360^o view tab. Operation principles are described in User manual.

Download:

Drawings:

Features

User-friendly software interface
Simple text-based communication protocol
Divides laser beam into two parallel beams of adjustable intensity ratio
Negligible beam deviation
High Optical damage threshold
Low dispersion for femtosecond and high energy laser pulses
Easy to integrate
Stand-alone USB powered controller
