2-CVB-MP-15-0780 - Standard Watt Pilot - Medium power attenuator, 15 mm Clear Aperture, 780 nm

More Views

2-CVB-MP-15-0780 - Standard Watt Pilot - Medium power attenuator, 15 mm Clear Aperture, 780 nm
US$780.00

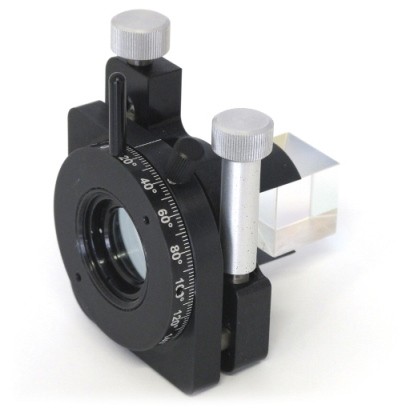

Standard Watt Pilot consists of 2 high-performance polarizing optics components placed in precision opto-mechanical holder. Variable attenuator/beamsplitter incorporates a high-performance polarizing cube beamsplitter which reflects s-polarized light 90 while transmitting p-polarized light. A rotating quartz Phase λ/2 Waveplate is placed in the incident polarized laser beam. The intensity ratio of those two beams may be continuously varied without alteration of other beam parameters by rotating the waveplate. Ratio can be controlled over a wide dynamic range. Pure p-polarization could be selected for maximum transmission, or pure s-polarization for maximum attenuation of the transmitted beam.
Clear Aperture, mm 15
Product Name 2-CVB-MP-15-0780
Type of configuration Medium power
Wavelength, nm 780
Delivery 2-4 weeks
Description

Details

Standard Watt Pilot consists of 2 high-performance polarizing optics components placed in precision opto-mechanical holder. Variable attenuator/beamsplitter incorporates a high-performance polarizing cube beamsplitter which reflects s-polarized light 90 while transmitting p-polarized light. A rotating quartz Phase λ/2 Waveplate is placed in the incident polarized laser beam. The intensity ratio of those two beams may be continuously varied without alteration of other beam parameters by rotating the waveplate. Ratio can be controlled over a wide dynamic range. Pure p-polarization could be selected for maximum transmission, or pure s-polarization for maximum attenuation of the transmitted beam.
Features
  • Divides laser beam into two beams of manually adjustable intensity ratio
  • Convenient 90deg angle between reflected and transmitted beams
  • Large dynamic range
  • Broadband transmission
  • Negligible beam deviation
  • Low dispersion for femtosecond laser pulses
Applications

Specifications of the standard models

MODELMedium Power Enhanced performanceMedium Power
Configurationλ/2 ZO Waveplate + Polarizing cubeλ/2 LO Waveplate + Polarizing cube
Operational wavelenght range+/-10 nm+/-2 nm
Damage threshhold, 1064nm, 10ns>0.3 J/cm2>0.3 J/cm2
